NSN 4820-00-103-5670
Part Details | PNEUMATIC TANK VALVE
4820-00-103-5670 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: 10034, 645 STEM WITH 7250 CORE, 645 STEM WITH 7250 CORE, 4820-00-103-5670, 00-103-5670, 4820001035670, 001035670
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 12, 1968 | 00-103-5670 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

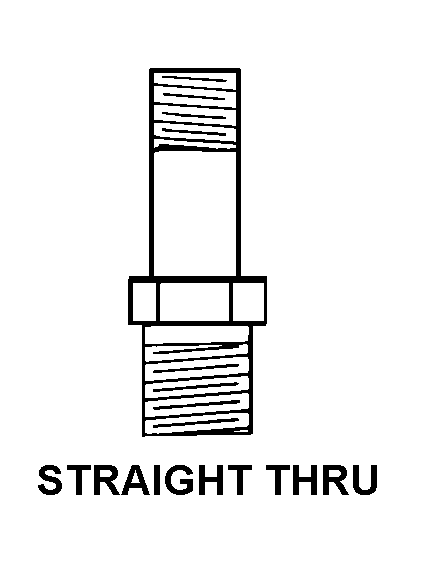

STRAIGHT THRU
PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-103-5670
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10034 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
| 645 STEM WITH 7250 CORE | 27783 | SCHRADER-BRIDGEPORT INTERNATIONALINC |
| 645 STEM WITH 7250 CORE | 53477 | SCOVILL INCSCHRADER BELLOWS DIV |
Technical Data | NSN 4820-00-103-5670
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| OUTSIDE SURFACE TREATMENT | NICKEL PLATED |
| SEAT MATERIAL | BRASS |
| FLOW CONTROL DEVICE | CORE |
| FLOW CONTROL DEVICE MATERIAL | BRASS AND PLASTIC, POLYTETRAFLUOROETHYLENE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.125 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| COMMERCIAL CORE LENGTH DESIGNATOR | STANDARD |
| SPRING MATERIAL | STEEL, CORROSION RESISTING |
| COMMERCIAL SPRING TENSION RATING | EXTREMELY LOW |
| SPECIAL FEATURES | TEMP RATING: -10.0 DEG FAHRENHEIT TO 165.0 DEG FAHRENHEIT |
