NSN 4820-00-089-1499
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-089-1499 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 4820000891499, 4820000891499, NW38, NW3-8, 02508959, 025-08959, 239AVHL, 4820-00-089-1499, 00-089-1499, 4820000891499, 000891499
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1961 | 00-089-1499 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
ANGLE

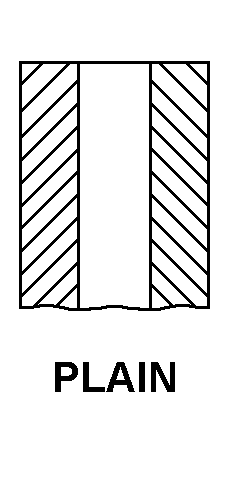

PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-089-1499
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4820000891499 | A00AM | E.C.A ETABLISSEMENT CENTRALDESAPPROVISIONNEMENTS DES FORCES |
| 4820000891499 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| NW3-8 | 98437 | ELLIS & WATTS INTERNATIONAL, LLC |
| 025-08959 | 66935 | JOHNSON CONTROLS NAVY SYSTEMS, LLC |
| 239AVHL | 91494 | SINGER CO THE CONTROLS DIV |
Technical Data | NSN 4820-00-089-1499
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| MAXIMUM INLET PRESSURE RATING | 465.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | +80.0 TO +250.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | 0.050 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| FURNISHED ITEMS | STRAINER |
| SEAT MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| FLOW CONTROL DEVICE MATERIAL | BRASS AND STEEL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.875 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | ANGLE |
| RENEWABLE SEAT RING TYPE | B ANY ACCEPTABLE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE STEM DESIGN | SINGLE SEAT |
| VALVE LOADING METHOD | SPRING |
| REMOTE ACTUATION METHOD | BELLOWS |
