NSN 4820-00-087-4417
Part Details | PNEUMATIC TANK VALVE
4820-00-087-4417 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Alternate Parts: DC429, 996038769, 99-6038769, DC429, 4820-00-087-4417, 00-087-4417, 4820000874417, 000874417
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAR 22, 1972 | 00-087-4417 | 06509 ( VALVE, PNEUMATIC TANK ) |
REFERENCE DRAWINGS & PICTURES

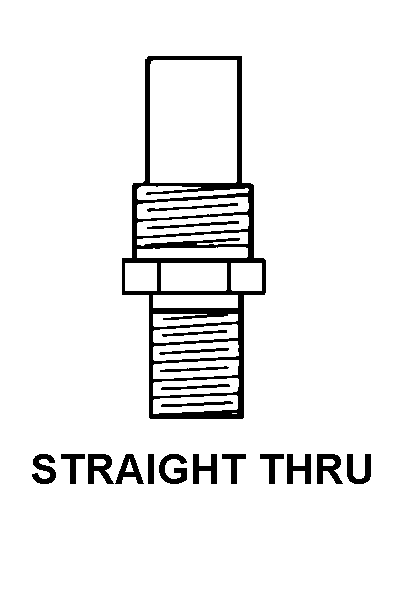

STRAIGHT THRU
IVERTED FLARE
FLARELESS
INVERTED FLARE
FLARELESS
INVERTED FLARE
FLARELESS
INVERTED FLARE
FLARELESS
Cross Reference | NSN 4820-00-087-4417
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DC429 | 05457 | BRITISH AEROSPACE NORTH AMERICA INC |
| 99-6038769 | 99995 | NATO STOCK NUMBER ASSIGNEDBY ANOTHER NATION |
| DC429 | K0012 | PARKER HANNIFIN MANUFACTURINGLIMITED HYDRAULIC CARTRIDGE SYSTEMS |
Technical Data | NSN 4820-00-087-4417
| Characteristic | Specifications |
|---|---|
| BODY STYLE | STRAIGHT THRU |
| BODY MATERIAL | STEEL |
| FLOW CONTROL DEVICE | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | IVERTED FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 30.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | FLARELESS |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES NOMINAL |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 12.0 |
| FURNISHED ITEMS | CAP AND CHAIN |
| SPECIAL FEATURES | TRIANGULAR MTG FLANGE ON BODY |
