Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-085-2872 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 299095141, 2990-9514-1, PR5051, PR50-5-1, D10156, 322AS1581, 322AS158-1, 299095141, 2990-9514-1, 2327043358, 232704-3358, 2327043358, 232704-3358, D10156, 299095141, 2990-9514-1, 322AS1581, 322AS158-1, 322AS158, D10156, 299095141, 2990-9514-1, 4820-00-085-2872, 00-085-2872, 4820000852872, 000852872
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | DEC 18, 1967 | 00-085-2872 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

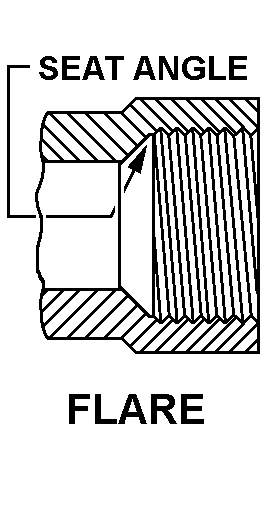

FLARE
FLARE
FLARE
FLARE
Cross Reference | NSN 4820-00-085-2872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2990-9514-1 | 91816 | CIRCOR AEROSPACE, INC.DBA CIRCLE SEAL CONTROLS |
| PR50-5-1 | 91816 | CIRCOR AEROSPACE, INC.DBA CIRCLE SEAL CONTROLS |
| D10156 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 322AS158-1 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 2990-9514-1 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 232704-3358 | 59364 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 232704-3358 | 99657 | MAROTTA CONTROLS, INC. |
| D10156 | 56190 | METADURE PARTS & SALES, INC.DBA METADURE PARTS & SALES |
| 2990-9514-1 | 56190 | METADURE PARTS & SALES, INC.DBA METADURE PARTS & SALES |
| 322AS158-1 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| 322AS158 | 30003 | NAVAL AIR SYSTEMS COMMAND MANAGEDORIGINAL DESIGN ACTIVITY NOT |
| D10156 | 96787 | STEWART AVIONICS INC |
| 2990-9514-1 | 63026 | VICTOR EQUIPMENT CO |
Technical Data | NSN 4820-00-085-2872
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP RATING | 130.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM INLET PRESSURE RATING | 3500.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE RANGE | +115.0 TO +130.0 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | GROUND SUPPORT EQUIPMENT FOR THE F/A-18 HORNET AIRCRAFT |
| FLOW CONTROL DEVICE | DISK |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | FLARE |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3 TO 4-16 UNF |
| FIRST END THREAD CLASS | 3B |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR AND NITROGEN, GASEOUS |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
