NSN 4820-00-084-6231
Part Details | FLUID PRESSURE REGULATING VALVE
4820-00-084-6231 A valve designed to automatically maintain within close limits a predetermined outlet pressure which may be adjustable within a specified range regardless of the higher fluctuating or constant inlet pressure. It is designed for use with compressed gas(es) and various liquids and may include gauges. It may be inline or cartridge (manifold) design. Excludes REGULATOR, PRESSURE, MEDICAL GAS ADMINISTRATION APPARATUS; REGULATOR, OXYGEN, BAROMETRIC CONTINUOUS FLOW; REGULATOR, OXYGEN DEMAND; REGULATOR, OXYGEN DILUTER DEMAND; and valve(1), fluid pressure regulating, aircraft.
Alternate Parts: 2404621, 8867249, 2404621, 8867249, 4820-00-084-6231, 00-084-6231, 4820000846231, 000846231
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-084-6231 | 27565 ( VALVE, REGULATING, FLUID PRESSURE ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT THRU

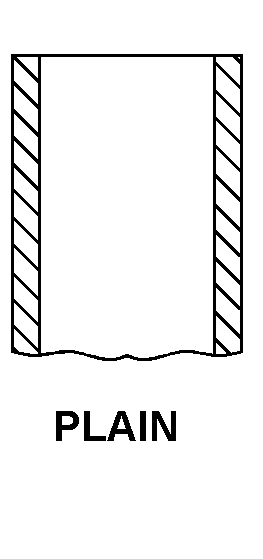

PLAIN
PLAIN
PLAIN
PLAIN
Cross Reference | NSN 4820-00-084-6231
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2404621 | 24617 | GENERAL MOTORS CORP |
| 8867249 | 24617 | GENERAL MOTORS CORP |
| 2404621 | 23862 | MILITARY VEHICLES OPNGENERAL MOTORS TRUCK AND BUS GROUP |
| 8867249 | 23862 | MILITARY VEHICLES OPNGENERAL MOTORS TRUCK AND BUS GROUP |
Technical Data | NSN 4820-00-084-6231
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | |
| FILTER | NOT INCLUDED |
| FLOW CONTROL DEVICE | CONE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | PLAIN |
| FIRST END NOMINAL PIPE SIZE ACCOMMODATED | 0.500 INCHES |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR |
| MOUNTING FACILITY | FLANGE |
| REGULATION TYPE | AUTOMATIC SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
