NSN 4820-00-082-5936
Part Details | EXPANSION VALVE
4820-00-082-5936 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Alternate Parts: HC12FW14X38X125FT, HC1-2FW1-4X3-8X1-2-5FT, F10002, 4022FCNP, 402-2FCNP, HF12FCIE5FT14X3812SAEANG6A, HF1/2FCIE5FT1/4X3/8-1/2SAEANG6A, 4820-00-082-5936, 00-082-5936, 4820000825936, 000825936
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-082-5936 | 05493 ( VALVE, EXPANSION ) |
REFERENCE DRAWINGS & PICTURES

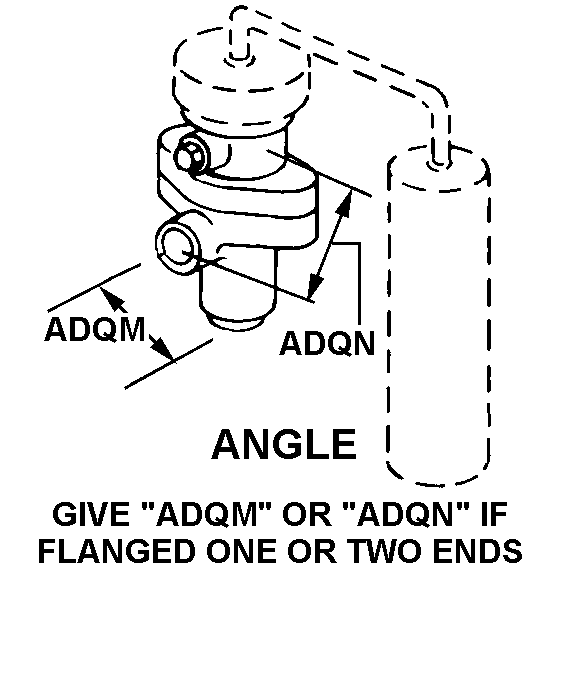

ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS
SOCKET
FLARED
SOCKET
FLARED
SOCKET
FLARED
SOCKET
FLARED
Cross Reference | NSN 4820-00-082-5936
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HC1-2FW1-4X3-8X1-2-5FT | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| F10002 | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| 402-2FCNP | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
| HF1/2FCIE5FT1/4X3/8-1/2SAEANG6A | 70255 | EMERSON ELECTRIC COALCO CONTROLS DIV |
Technical Data | NSN 4820-00-082-5936
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| BODY STYLE | ANGLE GIVE "ADQM" OR "ADQN" IF FLANGED ONE OR TWO ENDS |
| REFRIGERATION CAPACITY IN BTU PER HOUR | 6.0 |
| VALVE EQUALIZER LOCATION | INTERNAL |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| TEMP RATING | 50.0 DEG FAHRENHEIT |
| FLOW CONTROL DEVICE | E ANY ACCEPTABLE |
| SEAT MATERIAL | STEEL, CORROSION RESISTING |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | ANY ACCEPTABLE |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | SOCKET |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | FLARED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 45.0 |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 12 |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | HIGH |
| BULB MEDIA TYPE | REFRIGERANT 12 |
| CAPILLARY TUBE LENGTH | 60.000 INCHES NOMINAL |
| BULB MOUNTING METHOD | CLAMP |
| BULB LENGTH | 3.000 INCHES NOMINAL |
| BULB DIAMETER | 0.500 INCHES NOMINAL |
