NSN 4820-00-070-7922
Part Details | TEMPERATURE REGULATING VALVE
4820-00-070-7922 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Alternate Parts: 5120976, 5120976, 4820-00-070-7922, 00-070-7922, 4820000707922, 000707922
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JAN 01, 1963 | 00-070-7922 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
REFERENCE DRAWINGS & PICTURES

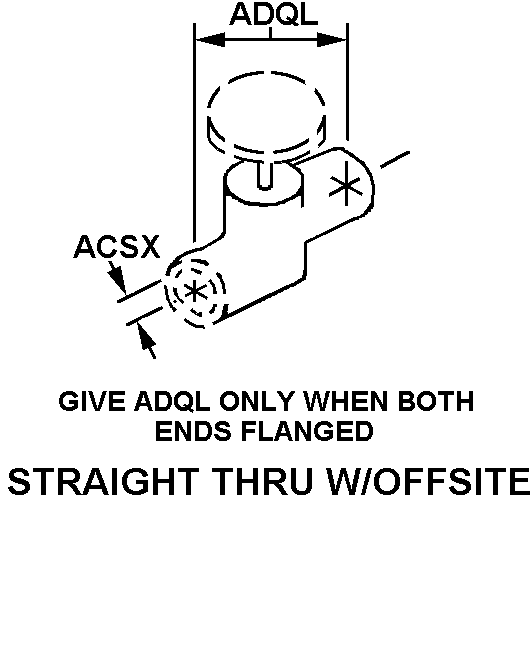

STRAIGHT THRU W/OFFSET
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
SWIVEL NUT, FLARE
Cross Reference | NSN 4820-00-070-7922
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5120976 | 24617 | GENERAL MOTORS CORP |
| 5120976 | 72582 | MTU AMERICA INC. |
Technical Data | NSN 4820-00-070-7922
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | BRASS |
| TEMP ADJUSTABILITY | NOT ADJUSTABLE |
| FLOW CONTROL DEVICE | BALL |
| FLOW CONTROL DEVICE MATERIAL | STEEL |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | 1 SWIVEL NUT, FLARE |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1 TO 4-18 NPT |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | STRAIGHT THRU W/OFFSET |
| OFFSET DISTANCE | 0.500 INCHES NOMINAL |
| MOUNTING FACILITY | FLANGE |
| THERMOSTATIC ELEMENT | INTEGRAL W/VALVE |
