NSN 4820-00-058-7322
Part Details | VALVE SEAT
4820-00-058-7322 A replaceable item designed to provide a stationary seating surface for a mating, moveable item such as a valve disk or the like. The body may have a flange of various shapes. For diesel and gasoline reciprocating engines, see INSERT, ENGINE VALVE SEAT.
Alternate Parts: 24207B, 4820-00-058-7322, 00-058-7322, 4820000587322, 000587322
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUN 06, 1967 | 00-058-7322 | 22113 ( SEAT, VALVE ) |

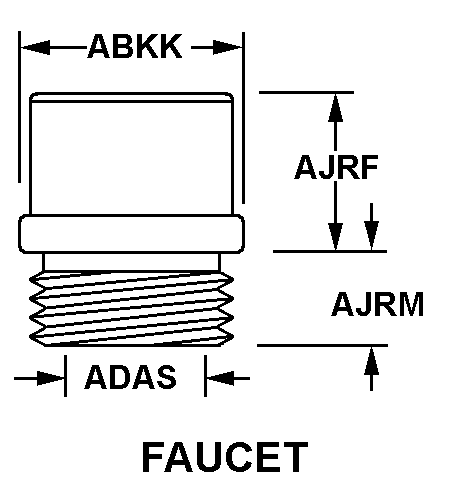

REFERENCE DRAWINGS & PICTURES
FAUCET
Cross Reference | NSN 4820-00-058-7322
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 24207B | 44218 | NORWALK COMPRESEER COMPANY INCDBA NORWALK COMPRESSOR COMPANY |
Technical Data | NSN 4820-00-058-7322
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FAUCET |
| FLANGE DIAMETER | 1.609 INCHES NOMINAL |
| OVERALL HEIGHT | 0.594 INCHES NOMINAL |
| SEATING SURFACE SHAPE | FLAT |
