NSN 4820-00-056-9266
Part Details | TEMPERATURE REGULATING VALVE
4820-00-056-9266 A self-acting valve designed for controlling, by means of a thermostatic element, the flow of liquids or gases therethrough. The thermostatic element is located in liquid or gas whose temperature is controlled by the heat of the liquid or gas flowing through the valve. See also VALVE, RELIEF, PRESSURE AND TEMPERATURE.
Alternate Parts: 589929, 215261123, 215-26112-3, 4820-00-056-9266, 00-056-9266, 4820000569266, 000569266
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | MAY 30, 1967 | 00-056-9266 | 05492 ( VALVE, REGULATING, TEMPERATURE ) |
REFERENCE DRAWINGS & PICTURES

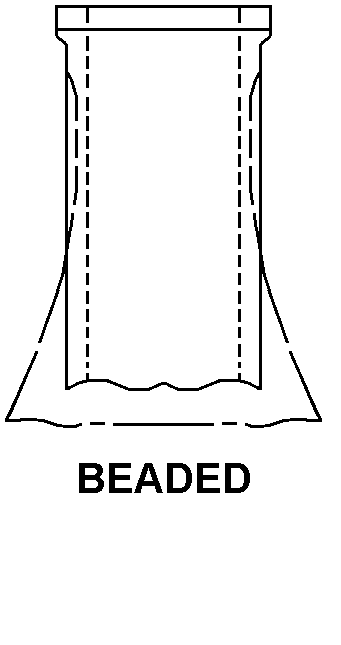

BEADED
BEADED
BEADED
BEADED
Cross Reference | NSN 4820-00-056-9266
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 589929 | 73030 | HAMILTON SUNDSTRAND CORPORATION |
| 215-26112-3 | 80378 | TRIUMPH AEROSTRUCTURES, LLCDBA TRIUMPH AEROSTRUCTURES - VOUGHT |
Technical Data | NSN 4820-00-056-9266
| Characteristic | Specifications |
|---|---|
| TEMP ADJUSTABILITY | ADJUSTABLE |
| FLOW CONTROL DEVICE | DISK, FLAT |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | BEADED |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| TWO-WAY VALVE ACTION | DIRECT ACTING |
