NSN 4810-01-586-7733
Part Details | SPECIAL SHAPED ACTUATOR VALVE DIAPHRAGM
4810-01-586-7733 An item constructed of one or more layers of thin flexible material, either laminated or separated, designed to form a tight seal between the chambers of a valve, and to transmit pressure inducted motion to a valve disk either directly or through a mechanical linkage. The surface of the item must be formed or molded to have a beaded or rolled edge, ribs or any other raised surfaces. The item may contain bolt holes and/or center holes. Excludes DIAPHRA GM, VALVE, FLAT and GASKET.
Alternate Parts: HP05500 5030P, 4810-01-586-7733, 01-586-7733, 4810015867733, 015867733
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | JUL 14, 2010 | 01-586-7733 | 40088 ( DIAPHRAGM, ACTUATOR VALVE, SPECIAL SHAPED ) |

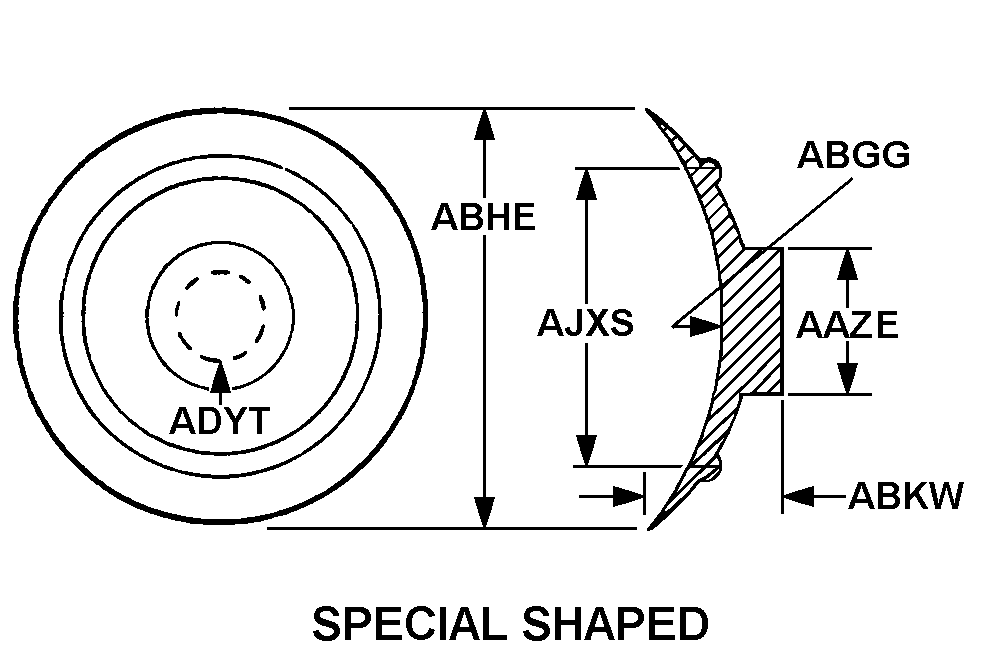

REFERENCE DRAWINGS & PICTURES
SPECIAL SHAPED
Cross Reference | NSN 4810-01-586-7733
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HP05500 5030P | 3PSD7 | JOHN DEERE SHARED SERVICES, INC.DBA JOHN DEERE CONSTRUCTION RETAIL |
Technical Data | NSN 4810-01-586-7733
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SPECIAL SHAPED |
| SPECIAL FEATURES | NHA INDECO-HP 5500 |
| END ITEM IDENTIFICATION | 3805-01-573-0677; EXCAVATOR, MULTIPURPOSE, END CRAWLER MOUNTED |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | DIAPHRAGM |
