NSN 4730-00-260-8284
Part Details | TUBE CAP
4730-00-260-8284 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Alternate Parts: N5C, 1129X4, 3791551REVBPC18, 3791-551REVBPC18, 5902643, 281700, 640FB14IN, 640FB1-4IN, 640FB04, 640FB-04, 640FB N54, 640-FB N5-4, N54, N5-4, NFT54, NFT5-4, MILF15049, MIL-F-15049, N54, N5-4, 512842, 51284-2, N54, N5-4, 3791551REVBPC18, 3791-551REVBPC18, MILF15049, MIL-F-15049, A4544, A-4544, SS(N)575S92001853642PC18, SS(N)575S-92001853642PC18, 640F4, 640F-4, 4010112B, 4 010112B(N5), J513, FIT5, 576B304, 576B3-04, 4730-00-260-8284, 00-260-8284, 4730002608284, 002608284
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-260-8284 | 06074 ( CAP, TUBE ) |
REFERENCE DRAWINGS & PICTURES
FLARE

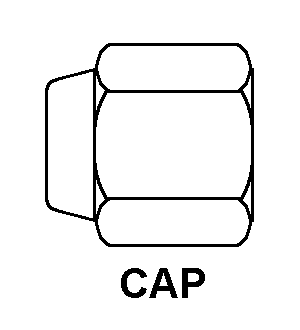

CAP
Cross Reference | NSN 4730-00-260-8284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N5C | 99203 | COUPLINGS COMPANY, INC. |
| 1129X4 | 79470 | DANA CORPWEATHERHEAD DIV |
| 3791-551REVBPC18 | 96169 | ELECTRIC BOAT CORPORATION |
| 5902643 | 99167 | HAMILTON SUNDSTRAND CORPORATION |
| 281700 | 30076 | HYSTER-YALE GROUP, INC. |
| 640FB1-4IN | 30327 | IMPERIAL |
| 640FB-04 | 30327 | IMPERIAL |
| 640-FB N5-4 | 30327 | IMPERIAL |
| N5-4 | 30327 | IMPERIAL |
| NFT5-4 | 30327 | IMPERIAL |
| MIL-F-15049 | 30327 | IMPERIAL |
| N5-4 | 32402 | JB INDUSTRIES INC |
| 51284-2 | 94833 | KECO INDUSTRIES INC. |
| N5-4 | 33334 | KEROTEST MANUFACTURING CORP. |
| 3791-551REVBPC18 | 82126 | MARE ISLAND NAVAL SHIPYARD |
| MIL-F-15049 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| A-4544 | 41947 | MUELLER BRASS |
| SS(N)575S-92001853642PC18 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
| 640F-4 | 93061 | PARKER-HANNIFIN CORPORATIONDBA FLUID SYSTEM CONNECTORS DIVISION |
| 4010112B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 4 010112B(N5) | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J513 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| FIT5 | 06084 | SOMMER ELECTRIC CO INC |
| 576B3-04 | 00365 | TLD ACE CORPORATION |
Technical Data | NSN 4730-00-260-8284
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CAP |
| CONNECTION STYLE | FLARE |
| SEAT ANGLE | 45.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.250 INCHES NOMINAL |
| MAXIMUM OPERATING PRESSURE | 500.0 POUNDS PER SQUARE INCH |
| SPECIFICATION/STANDARD DATA | 81343-J513 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| NONDEFINITIVE SPEC/STD DATA | 37 FIGURE |
| END ITEM IDENTIFICATION | VARIOUS APPLICATIONS |
