NSN 4730-00-260-2579
Part Details | FLEXIBLE TUBE COUPLING ASSEMBLY
4730-00-260-2579 A multipiece gasket sealed item specifically designed for joining plain end ferruled tubing or beaded end tubing that will accommodate angular misalignment, axial motion and permits expansion and contraction of the tubing. It may be disconnected for seal replacement without disturbing the rest of the line. The seals are not normally furnished with the item. For rigid type items see COUPLING, TUBE; and UNION, TUBE.
Alternate Parts: FRS995M, 4730-00-260-2579, 00-260-2579, 4730002602579, 002602579
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 22, 1973 | 00-260-2579 | 32834 ( COUPLING ASSEMBLY, TUBE, FLEXIBLE ) |
REFERENCE DRAWINGS & PICTURES

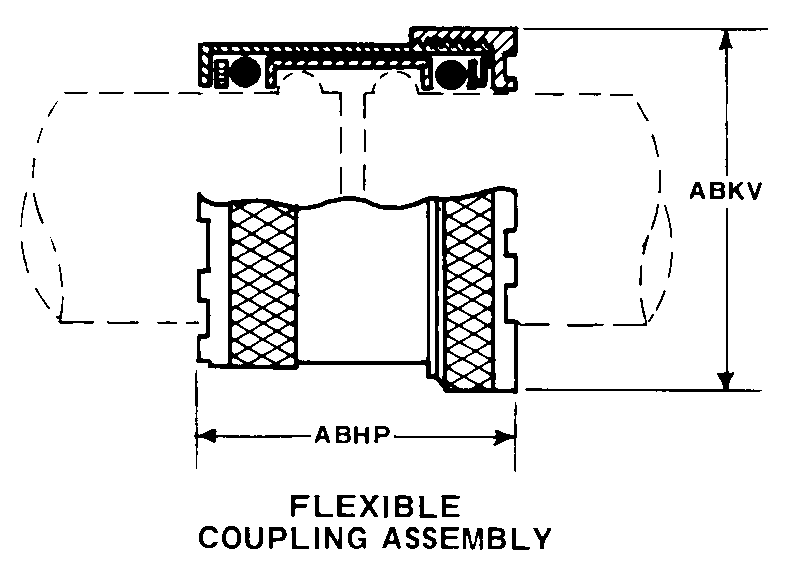

FLEXIBLE COUPLING ASSEMBLY
Cross Reference | NSN 4730-00-260-2579
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FRS995M | U1918 | FLIGHT REFUELLING LTDDBA COBHAM MISSION SYSTEMS |
Technical Data | NSN 4730-00-260-2579
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | FLEXIBLE COUPLING ASSEMBLY |
| OVERALL LENGTH | 1.672 INCHES NOMINAL |
| OUTSIDE DIAMETER | 2.859 INCHES NOMINAL |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
