NSN 4730-00-257-0373
Part Details | TUBE COUPLING
4730-00-257-0373 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Alternate Parts: 190922, 190922, 4730002570373, 190922, SAE J512 66 040101C, SAE J512 6-6 040101C, J512, 66 040101C, 6-6 040101C, 4730-00-257-0373, 00-257-0373, 4730002570373, 002570373
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAR 29, 1971 | 00-257-0373 | 06078 ( COUPLING, TUBE ) |
REFERENCE DRAWINGS & PICTURES

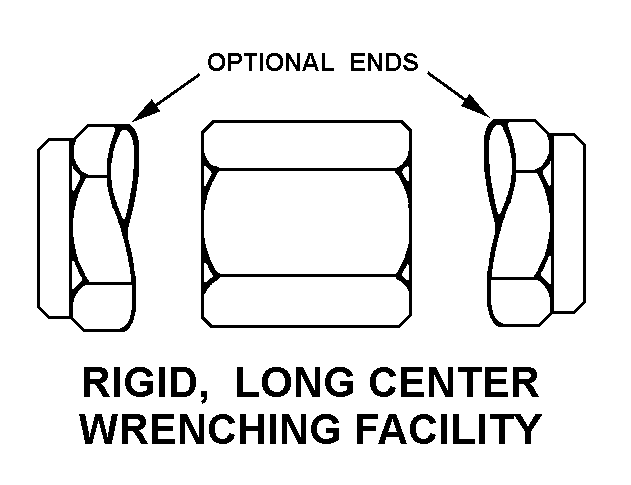

RIGID, LONG CENTER WRENCHING FACILITY
Cross Reference | NSN 4730-00-257-0373
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 190922 | 21450 | ARMY WEAPONS COMMANDATTN AMSWE-REE-S |
| 190922 | 19204 | ARMY, UNITED STATES DEPARTMENT OFTHE |
| 4730002570373 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 190922 | 24617 | GENERAL MOTORS CORP |
| SAE J512 6-6 040101C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| J512 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 6-6 040101C | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 4730-00-257-0373
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | RIGID, LONG CENTER WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 0.797 INCHES |
