NSN 4730-00-256-1387
Part Details | SOIL PIPE REDUCER
4730-00-256-1387 A straight fitting with the spigot end larger than the hub end. It is used to connect two pieces of soil pipe of different size.
Alternate Parts: WWP401CLASSAF1G18TABLE19, E308, 4730-00-256-1387, 00-256-1387, 4730002561387, 002561387
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-256-1387 | 03795 ( REDUCER, SOIL PIPE ) |

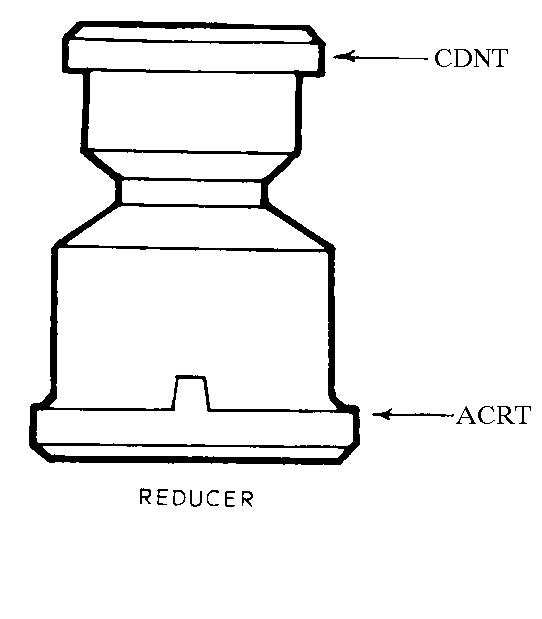

REFERENCE DRAWINGS & PICTURES
REDUCER
Cross Reference | NSN 4730-00-256-1387
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401CLASSAF1G18TABLE19 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| E308 | 83974 | MEAD CORP MEAD PIPE DIV |
Technical Data | NSN 4730-00-256-1387
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | REDUCER |
| INLET NOMINAL PIPE SIZE ACCOMMODATED | 3.500 INCHES |
| OUTLET NOMINAL PIPE SIZE ACCOMMODATED | 3.000 INCHES |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
