NSN 4730-00-251-7829
Part Details | LUBRICATION FITTING
4730-00-251-7829 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: H9362, C1330, 1871A, 1848, 1829, 4730-00-251-7829, 00-251-7829, 4730002517829, 002517829
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-251-7829 | 03177 ( FITTING, LUBRICATION ) |
REFERENCE DRAWINGS & PICTURES

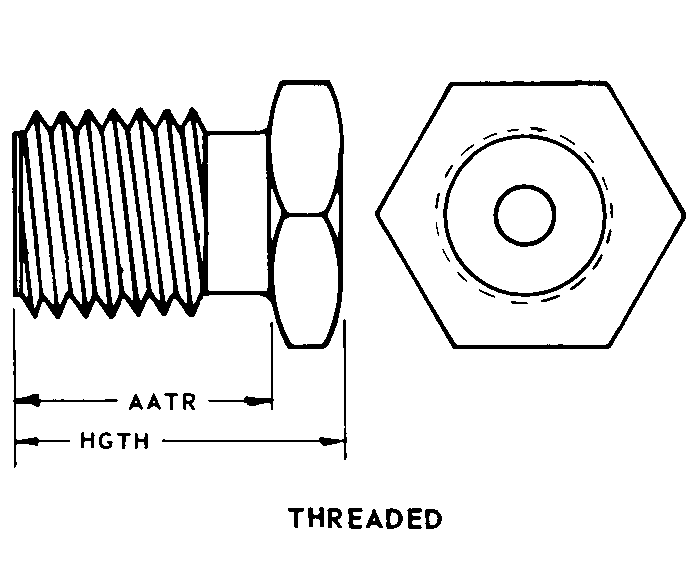

THREADED
Cross Reference | NSN 4730-00-251-7829
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H9362 | 35311 | AMERICAN STANDARD INCWESTINGHOUSE AIR BRAKE CO DIV |
| C1330 | 35311 | AMERICAN STANDARD INCWESTINGHOUSE AIR BRAKE CO DIV |
| 1871A | 95879 | STEWART-WARNER ALEMITE CORP |
| 1848 | 95879 | STEWART-WARNER ALEMITE CORP |
| 1829 | 95879 | STEWART-WARNER ALEMITE CORP |
Technical Data | NSN 4730-00-251-7829
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED |
| SHANK LENGTH | 0.375 INCHES NOMINAL |
| HEIGHT | 1.188 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.378 INCHES |
| SPECIAL FEATURES | SURFACE LOCATED DISK TYPE CHECK VALVE |
