NSN 4730-00-251-6513
Part Details | PIPE UNION
4730-00-251-6513 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Alternate Parts: 13221E83746, 13221E8374-6, 13221E8374, 0132120020, 0132120-020, 9897020 CPVC, 9897-020 CPVC, 897020 CPVC, 897-020 CPVC, 1897E020, 05028012, 0502.8012, 1897E020, 4730-00-251-6513, 00-251-6513, 4730002516513, 002516513
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 18, 1973 | 00-251-6513 | 03785 ( UNION, PIPE ) |
REFERENCE DRAWINGS & PICTURES

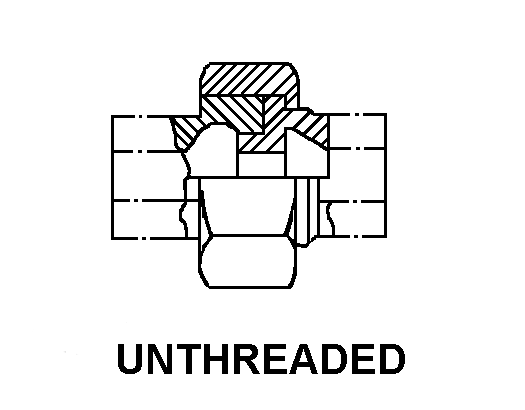

UNTHREADED
Cross Reference | NSN 4730-00-251-6513
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13221E8374-6 | 97403 | CECOM LR CENTER |
| 13221E8374 | 97403 | CECOM LR CENTER |
| 0132120-020 | 54119 | CLEVELAND SERVICE CENTER |
| 9897-020 CPVC | 14889 | GEORGE FISCHER SLOANE INC. |
| 897-020 CPVC | 14889 | GEORGE FISCHER SLOANE INC. |
| 1897E020 | 14007 | NIBCO INC |
| 05028012 | 14007 | NIBCO INC |
| 0502.8012 | 61623 | NIBCO INCCHEMTROL DIV |
| 1897E020 | 61623 | NIBCO INCCHEMTROL DIV |
Technical Data | NSN 4730-00-251-6513
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | UNTHREADED |
| NOMINAL OVERALL LENGTH | 3.750 INCHES |
| SEAT TYPE | GASKET |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
