NSN 4730-00-250-7906
Part Details | LUBRICATION FITTING
4730-00-250-7906 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 1795B, 1795B, 1795-B, 1795, 1795B, 1795, 1795, 1795B, M1152, 90148PCM1339, 4730-00-250-7906, 00-250-7906, 4730002507906, 002507906
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-250-7906 | 03177 ( FITTING, LUBRICATION ) |
REFERENCE DRAWINGS & PICTURES

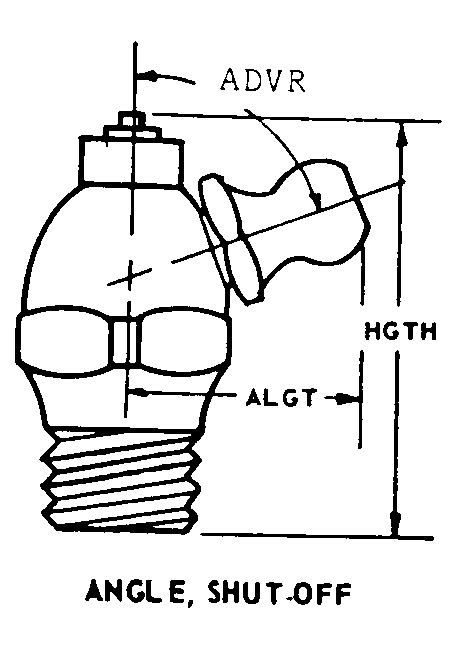

ANGLE, SHUT-OFF
Cross Reference | NSN 4730-00-250-7906
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1795B | 95879 | STEWART-WARNER ALEMITE CORP |
| 1795-B | 0GF30 | STEWART-WARNER ALEMITE CORP |
| 1795 | 95879 | STEWART-WARNER ALEMITE CORP |
| 1795B | 70270 | STEWART-WARNER ALEMITE SALES CO INC |
| 1795 | 70270 | STEWART-WARNER ALEMITE SALES CO INC |
| 1795 | 57733 | STEWART-WARNER CORPORATION |
| 1795B | 57733 | STEWART-WARNER CORPORATION |
| M1152 | 61208 | TWIN DISC INCORPORATED |
| 90148PCM1339 | 61208 | TWIN DISC INCORPORATED |
Technical Data | NSN 4730-00-250-7906
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE, SHUT-OFF |
| ANGLE IN DEG | 60.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.562 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | PTF-SPL SHORT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| SPECIAL FEATURES | CRTL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
