NSN 4730-00-248-5977
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-248-5977 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: 375288, 4730002485977, 375288, 175288, 7339986, 4730-00-248-5977, 00-248-5977, 4730002485977, 002485977
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 09, 1972 | 00-248-5977 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

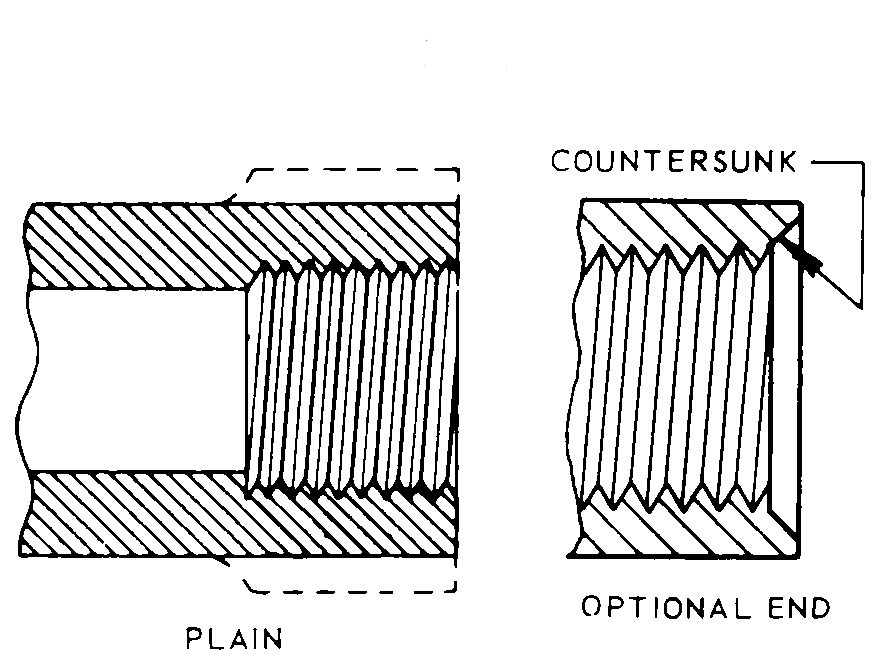

REFERENCE DRAWINGS & PICTURES
PLAIN
1 FLUID CONNECTION
Cross Reference | NSN 4730-00-248-5977
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 375288 | 14892 | BENDIX CORP THE BRAKE AND STEERINGDIV |
| 4730002485977 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 375288 | 06848 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 175288 | 06848 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 7339986 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4730-00-248-5977
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 360 |
| STYLE DESIGNATOR | 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.188 INCHES NOMINAL |
| OVERALL WIDTH | 0.812 INCHES NOMINAL |
| THICKNESS | 0.750 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.593 INCHES MINIMUM AND 0.598 INCHES MAXIMUM |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | PLAIN |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 3/8 IN OD TUBE |
| THREAD PROVISION | THREADED |
| THREAD SIZE | 5/8 IN-18 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| SEAT | NOT INCLUDED |
| BOLT HOLE FLATS SERRATIONS | PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| SPECIAL FEATURES | WEAPON SYSTEM ESSENTIAL |
| CRITICALITY CODE JUSTIFICATION | FEAT |
| END ITEM IDENTIFICATION | TRUCK, CARGO, DROPSIDE, 5-TON, 6X6 (M813A1, M-923, M-925);TRUCK, DUMP, |
