NSN 4730-00-247-9794
Part Details | PIPE UNION
4730-00-247-9794 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Alternate Parts: 05029009, 05029009, 4730-00-247-9794, 00-247-9794, 4730002479794, 002479794
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUN 13, 1973 | 00-247-9794 | 03785 ( UNION, PIPE ) |
REFERENCE DRAWINGS & PICTURES

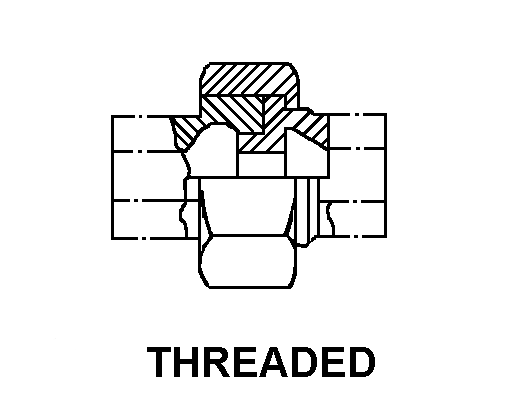

THREADED
Cross Reference | NSN 4730-00-247-9794
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05029009 | 14007 | NIBCO INC |
| 05029009 | 61623 | NIBCO INCCHEMTROL DIV |
Technical Data | NSN 4730-00-247-9794
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | THREADED |
| NOMINAL OVERALL LENGTH | 2.531 INCHES |
| SEAT TYPE | GASKET |
| FURNISHED ITEMS AND QUANTITY | 1 PREFORMED PACKING |
