NSN 4730-00-247-7119
Part Details | LUBRICATING OIL CUP
4730-00-247-7119 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Alternate Parts: STYLE53, GGGC2794C01BR, GGGC2794-C-01-BR, GGGC2794, GGG-C-2794, MILCC1258, MIL-C-C1258, 4730-00-247-7119, 00-247-7119, 4730002477119, 002477119
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-247-7119 | 03179 ( CUP, OIL, LUBRICATING ) |
REFERENCE DRAWINGS & PICTURES

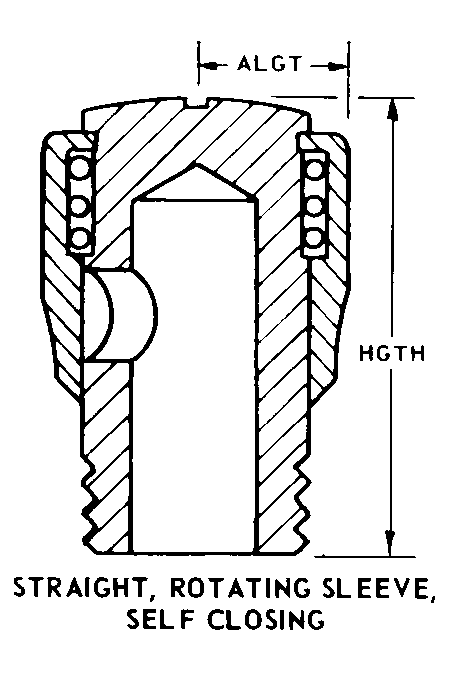

STRAIGHT, ROTATING SLEEVE, SELF CLOSING
Cross Reference | NSN 4730-00-247-7119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| STYLE53 | 90655 | BOWEN PRODUCTS CORP |
| GGGC2794-C-01-BR | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| GGG-C-2794 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| MIL-C-C1258 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
Technical Data | NSN 4730-00-247-7119
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, ROTATING SLEEVE, SELF CLOSING |
| ASSEMBLY CLEARANCE RADIUS | 0.250 INCHES NOMINAL |
| HEIGHT | 1.812 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| NONDEFINITIVE SPEC/STD DATA | C TYPE |
