NSN 4730-00-246-1665
Part Details | TUBE-HOSE ADAPTER BODY
4730-00-246-1665 An incomplete fitting which, when installed is designed to join together in a straight line a tube and/or tube fitting to a hose and/or hose fitting. The item may have a complete connection on one end; the other end always requires an additional nut and/or sleeve to make a complete end connection.
Alternate Parts: G712412502, G7124-125-02, G712412502, G7124-125-02, 4730-00-246-1665, 00-246-1665, 4730002461665, 002461665
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 03, 1969 | 00-246-1665 | 32833 ( ADAPTER BODY, TUBE-HOSE ) |
REFERENCE DRAWINGS & PICTURES

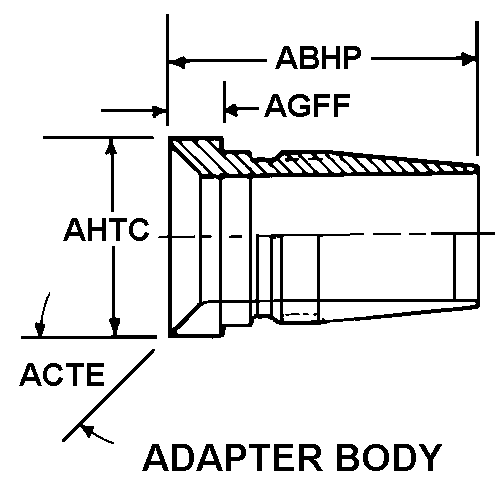

ADAPTER BODY
Cross Reference | NSN 4730-00-246-1665
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| G7124-125-02 | 0D0D0 | BAE SYSTEMS INFORMATION ANDELECTRONIC SYSTEMS INTEGRATION INC. |
| G7124-125-02 | 88818 | KEARFOTT CORPORATIONDBA KEARFOTT |
Technical Data | NSN 4730-00-246-1665
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 7075 |
| STYLE DESIGNATOR | ADAPTER BODY |
| OVERALL LENGTH | 1.700 INCHES NOMINAL |
| FLANGE WIDTH | 0.094 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 1.499 INCHES NOMINAL |
