NSN 4730-00-246-0410
Part Details | TUBE COUPLING INVERTED NUT
4730-00-246-0410 An externally threaded fastening device which has an internal or external seat, designed to mate with the seat of an internally threaded tube fitting for the purpose of securing the tube to the fitting to form a leakproof connection.
Alternate Parts: 251904, 251904, 4730-00-246-0410, 00-246-0410, 4730002460410, 002460410
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JUL 11, 1969 | 00-246-0410 | 03857 ( INVERTED NUT, TUBE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

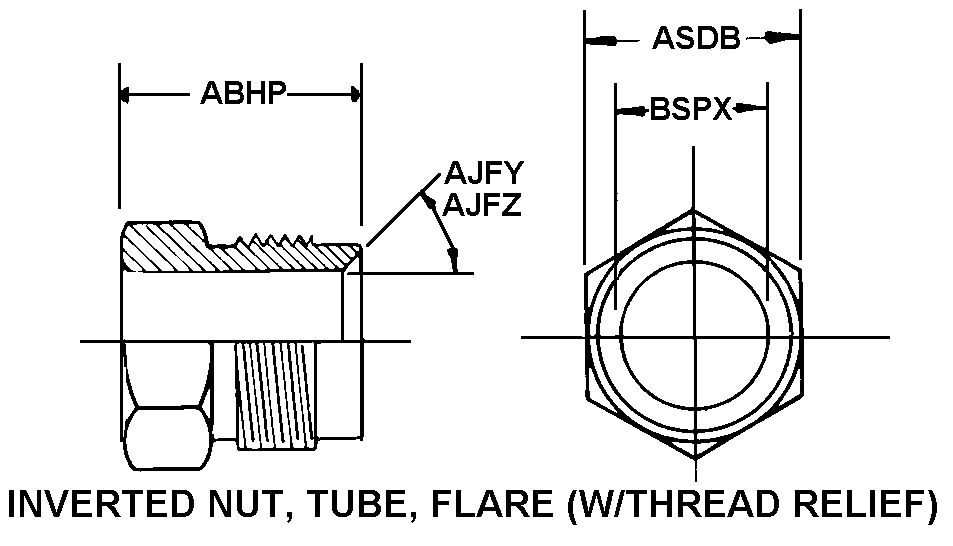

INVERTED NUT, TUBE, FLARE
Cross Reference | NSN 4730-00-246-0410
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 251904 | 0KDP7 | KIDDE-FENWAL, INC.DBA KIDDE FIRE SYSTEM |
| 251904 | 96487 | VALCOR ENGINEERING CORPORATION |
Technical Data | NSN 4730-00-246-0410
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2011 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 3, ALLOY 2011, T3 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| FABRICATION METHOD | BAR STOCK, MACHINED |
| STYLE DESIGNATOR | INVERTED NUT, TUBE, FLARE |
| OVERALL LENGTH | 0.260 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
| SMALLEST INSIDE DIAMETER | 0.203 INCHES NOMINAL |
| SEAT ANGLE IN DEG | 33.0 |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.188 INCHES NOMINAL |
| THREAD SIZE | 3/8-24 |
| SCREW THREAD SERIES DESIGNATOR | UNF |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
