NSN 4730-00-242-2920
Part Details | GREASE CUP
4730-00-242-2920 An item to be mounted on machinery, designed to hold grease and supply it to parts of machinery.
Alternate Parts: 84439, 844-39, 84439, 844-39, 215V00, 5006, 4730-00-242-2920, 00-242-2920, 4730002422920, 002422920
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-242-2920 | 03176 ( CUP, GREASE ) |

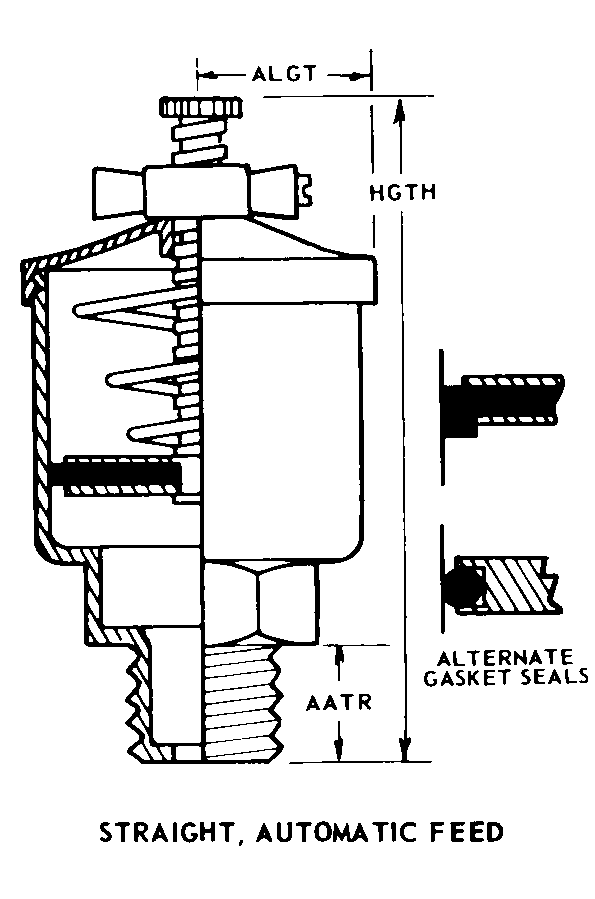

REFERENCE DRAWINGS & PICTURES
STRAIGHT, AUTOMATIC FEED
Cross Reference | NSN 4730-00-242-2920
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 844-39 | 12793 | AQUA-CHEM INCCLEAVER-BROOKS DIV |
| 844-39 | 0EXU3 | AQUA-CHEM, INC. |
| 215V00 | 90655 | BOWEN PRODUCTS CORP |
| 5006 | 96046 | CRANE PUMPS & SYSTEMS, INC. |
Technical Data | NSN 4730-00-242-2920
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, AUTOMATIC FEED |
| ASSEMBLY CLEARANCE RADIUS | 0.500 INCHES NOMINAL |
| HEIGHT | 3.500 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| GREASE CAPACITY | 0.500 OUNCES |
