NSN 4730-00-236-2413
Part Details | LUBRICATION FITTING
4730-00-236-2413 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 5B9916, 5B9916, 4730-00-236-2413, 00-236-2413, 4730002362413, 002362413
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 29, 1969 | 00-236-2413 | 03177 ( FITTING, LUBRICATION ) |

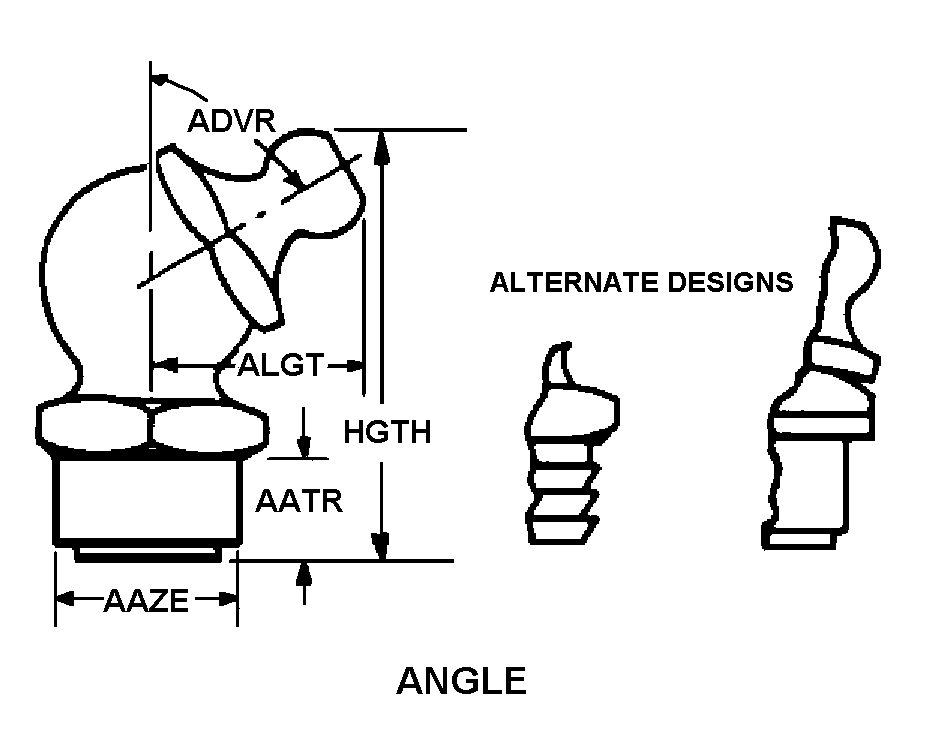

REFERENCE DRAWINGS & PICTURES
ANGLE
Cross Reference | NSN 4730-00-236-2413
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5B9916 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| 5B9916 | 58312 | MIL-TECH MFG INC |
Technical Data | NSN 4730-00-236-2413
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE |
| SHANK LENGTH | 1.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.375 INCHES NOMINAL |
| ANGLE IN DEG | 90.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.500 INCHES NOMINAL |
| HEIGHT | 1.844 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
