NSN 4730-00-235-2783
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-235-2783 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: 2588788, 4730-00-235-2783, 00-235-2783, 4730002352783, 002352783
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 28, 1973 | 00-235-2783 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
REFERENCE DRAWINGS & PICTURES

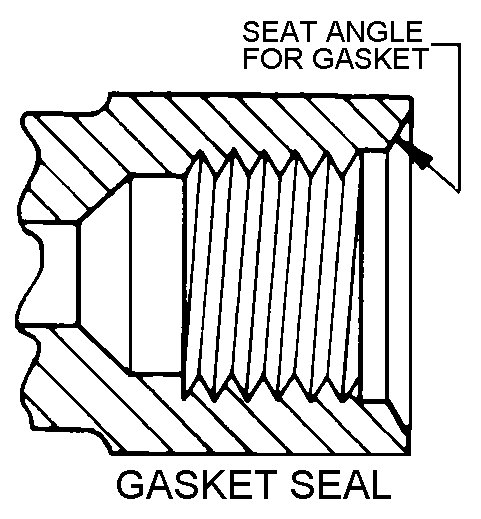

GASKET SEAL
Cross Reference | NSN 4730-00-235-2783
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2588788 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Technical Data | NSN 4730-00-235-2783
| Characteristic | Specifications |
|---|---|
| MATERIAL | 3$6$3$6 |
| OVERALL LENGTH | 5.120 INCHES NOMINAL |
| OVERALL WIDTH | 3.190 INCHES MINIMUM AND 3.250 INCHES MAXIMUM |
| THICKNESS | 1.840 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 6 |
| CONNECTION STYLE | GASKET SEAL |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/4 IN.OD TUBE,1/4 IN.OD TUBE,1/2 IN.OD TUBE,1/2 IN.OD TUBE,1/2 IN.OD TUBE,1/2 IN.OD TUBE |
| SCREW THREAD SERIES DESIGNATOR | UNJF |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
