NSN 4730-00-234-3993
Part Details | FLUID PASSAGE BOLT
4730-00-234-3993 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 42789801, 427898-01, 4730-00-234-3993, 00-234-3993, 4730002343993, 002343993
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 26, 1970 | 00-234-3993 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES

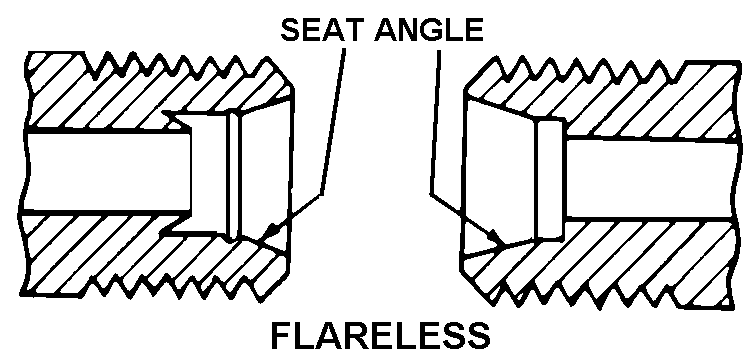

FLARELESS
FLARELESS
HEXAGON
Cross Reference | NSN 4730-00-234-3993
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 427898-01 | 07690 | BAE SYSTEMS CONTROLS INC |
Technical Data | NSN 4730-00-234-3993
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225 TO 8,T6 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE |
| CONCENTRIC HOLE DEPTH | 0.440 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.168 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| WRENCHING FEATURE HEIGHT | 0.380 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END THREAD SERIES DESIGNATOR | UNJF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | FLARELESS |
| SECOND END SEAT ANGLE | 37.0 DEGREES NOMINAL |
| WRENCHING FEATURE STYLE | HEXAGON |
| WIDTH ACROSS FLATS | 0.750 INCHES NOMINAL |
