NSN 4730-00-234-1155
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-234-1155 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: 4730002341155, CPR103845, 4730-00-234-1155, 00-234-1155, 4730002341155, 002341155
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 28, 1973 | 00-234-1155 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |
REFERENCE DRAWINGS & PICTURES

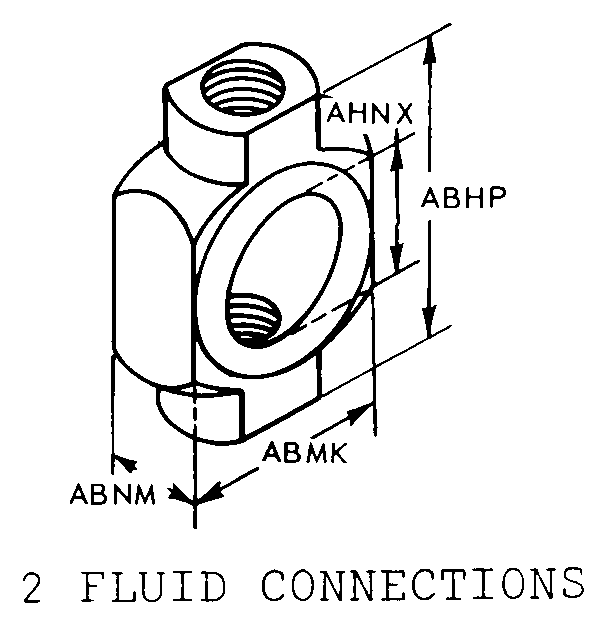

2 FLUID CONNECTIONS
Cross Reference | NSN 4730-00-234-1155
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4730002341155 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| CPR103845 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4730-00-234-1155
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$DST1018 |
| SURFACE TREATMENT | ENAMEL |
| STYLE DESIGNATOR | 4 2 FLUID CONNECTIONS |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.250 INCHES NOMINAL |
| THICKNESS | 1.120 INCHES NOMINAL |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 1/8 IN. NOM PIPE SIZE; 3/4 IN. NOM PIPE SIZE |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | NOT PROVIDED |
