NSN 4730-00-233-1370
Part Details | SOIL PIPE BEND
4730-00-233-1370 A fitting used to connect two or more sections of soil pipe to form a turn. This includes bends with side or heel inlets.
Alternate Parts: WWP401, E103, 4730-00-233-1370, 00-233-1370, 4730002331370, 002331370
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-233-1370 | 03792 ( BEND, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

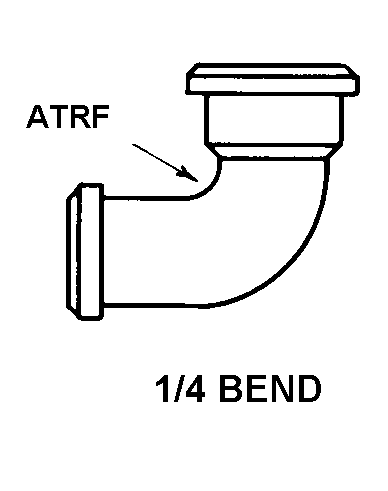

1/4 BEND
Cross Reference | NSN 4730-00-233-1370
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| E103 | 83974 | MEAD CORP MEAD PIPE DIV |
Technical Data | NSN 4730-00-233-1370
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 1/4 BEND |
| NOMINAL PIPE SIZE | 2.500 INCHES |
| NOMINAL LAYING LENGTH | 5.969 INCHES |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | SERVICE WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | SV CLASS |
