NSN 4730-00-233-0765
Part Details | LUBRICATING OIL CUP
4730-00-233-0765 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Alternate Parts: 0080202581, 00802-0258-1, STYLEY802, 188405APC311, 185438PC311, 185413PC311, 802, 4730-00-233-0765, 00-233-0765, 4730002330765, 002330765
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-233-0765 | 03179 ( CUP, OIL, LUBRICATING ) |
REFERENCE DRAWINGS & PICTURES

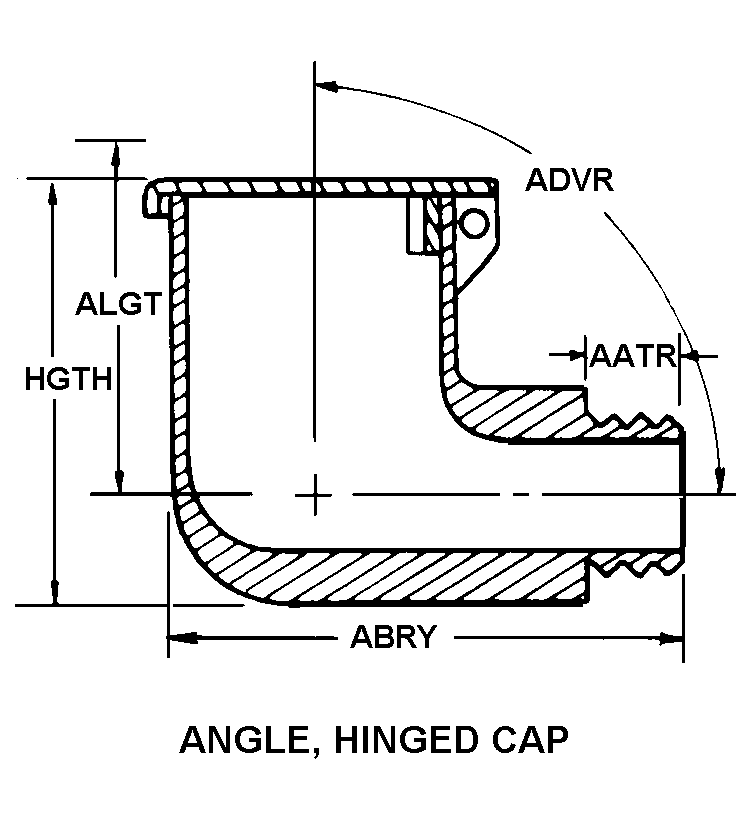

ANGLE, HINGED CAP
Cross Reference | NSN 4730-00-233-0765
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 00802-0258-1 | 24981 | APACHE CORPGITS BROS MFG CO |
| STYLEY802 | 24981 | APACHE CORPGITS BROS MFG CO |
| 188405APC311 | 30760 | INGERSOLL RAND CO |
| 185438PC311 | 30760 | INGERSOLL RAND CO |
| 185413PC311 | 30760 | INGERSOLL RAND CO |
| 802 | 50309 | JOHN REINER & CO. INC. |
Technical Data | NSN 4730-00-233-0765
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE, HINGED CAP |
| SHANK LENGTH | 0.312 INCHES NOMINAL |
| LENGTH | 1.469 INCHES NOMINAL |
| ANGLE IN DEG | 90.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.844 INCHES NOMINAL |
| HEIGHT | 1.000 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| OIL CAPACITY | 0.188 FLUID OUNCES |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
