NSN 4730-00-233-0713
Part Details | LUBRICATING OIL CUP
4730-00-233-0713 An item designed to be driven or threaded into a machine part for the purpose of dispensing oil to a lubricating passage or duct, and to seal the passage or duct against dirt and moisture. The item does not have a transparent body, or contain a wick or needle to restrict or filter the flow.
Alternate Parts: 0530508331, 05305-0833-1, 530508331, 5305-0833-1, 5305, 45C9199210, 45C9199-210, 4730-00-233-0713, 00-233-0713, 4730002330713, 002330713
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-233-0713 | 03179 ( CUP, OIL, LUBRICATING ) |

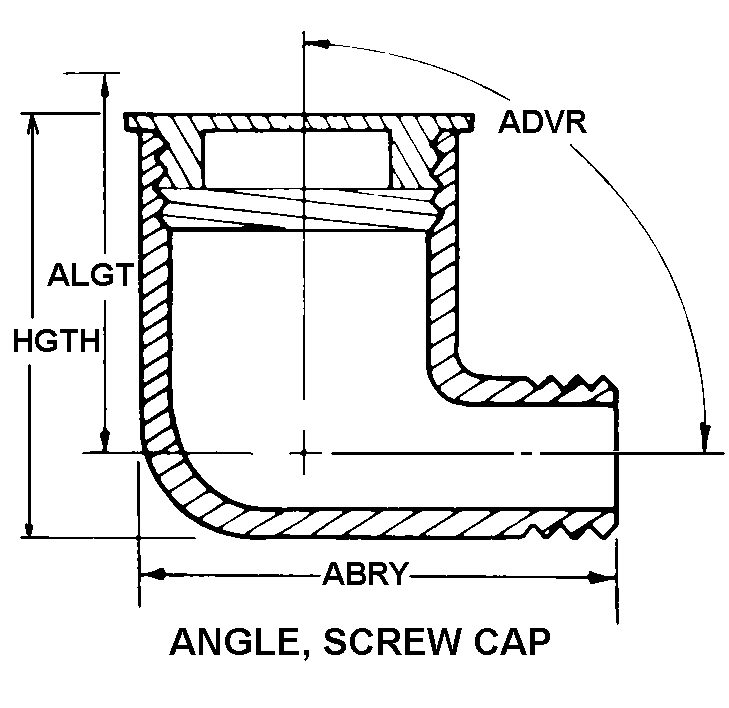

REFERENCE DRAWINGS & PICTURES
ANGLE, SCREW CAP
Cross Reference | NSN 4730-00-233-0713
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 05305-0833-1 | 24981 | APACHE CORPGITS BROS MFG CO |
| 5305-0833-1 | 24981 | APACHE CORPGITS BROS MFG CO |
| 5305 | 24981 | APACHE CORPGITS BROS MFG CO |
| 45C9199-210 | 10001 | NAVAIR AND NAVSEA MANAGEDORIGINAL DESIGN ACTIVITY DWG NOT |
Technical Data | NSN 4730-00-233-0713
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE, SCREW CAP |
| LENGTH | 2.781 INCHES NOMINAL |
| ANGLE IN DEG | 90.0 |
| ASSEMBLY CLEARANCE RADIUS | 1.438 INCHES NOMINAL |
| HEIGHT | 1.875 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 14 |
| OIL CAPACITY | 0.500 FLUID OUNCES |
