NSN 4730-00-231-6222
Part Details | TUBE SEAL BONNET
4730-00-231-6222 A metal tube fitting used with a coupling nut or sealing cap to cap the end of a fitting. It may include items with integral mounting features.
Alternate Parts: 6T22XD, 6T22XD, 6T22XD, 4730-00-231-6222, 00-231-6222, 4730002316222, 002316222
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 19, 1970 | 00-231-6222 | 03784 ( SEAL BONNET, TUBE ) |
REFERENCE DRAWINGS & PICTURES

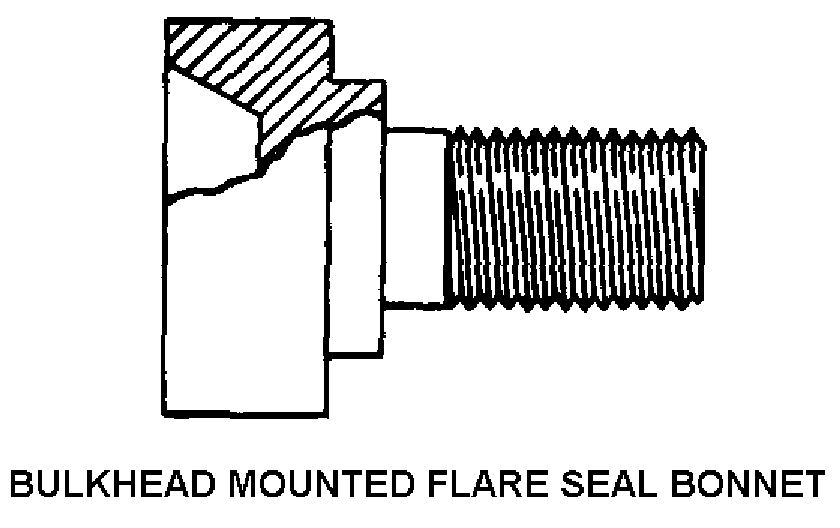

BULKHEAD MOUNTED FLARE SEAL BONNET
Cross Reference | NSN 4730-00-231-6222
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6T22XD | 98441 | PARKER-HANNIFIN CORPORATIONDBA STRATOFLEX PRODUCTS DIVISION |
| 6T22XD | 30780 | PARKER-HANNIFIN CORPORATIONDBA TUBE FITTINGS DIVISION |
| 6T22XD | 45681 | PARKER-HANNIFIN CORPORATIONDIV CORPORATE HEADQUARTERS |
Technical Data | NSN 4730-00-231-6222
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| STYLE DESIGNATOR | BULKHEAD MOUNTED FLARE SEAL BONNET |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.375 INCHES NOMINAL |
| INTEGRAL MOUNTING STUD | INCLUDED |
| STUD OVERALL LENGTH | 1.531 INCHES NOMINAL |
| STUD THREAD SIZE | 0.250-20 |
| SCREW THREAD SERIES DESIGNATOR | UNC |
| THREAD CLASS | 3A |
| THREAD LENGTH | 0.812 INCHES |
| THREAD DIRECTION | RIGHT-HAND |
