NSN 4730-00-231-5669
Part Details | TUBE COUPLING SWAGE FERRULE
4730-00-231-5669 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Alternate Parts: C018340, C018-3-40, AS1716D40, 6305240, 63052-40, 4730-00-231-5669, 00-231-5669, 4730002315669, 002315669
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | OCT 19, 1970 | 00-231-5669 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

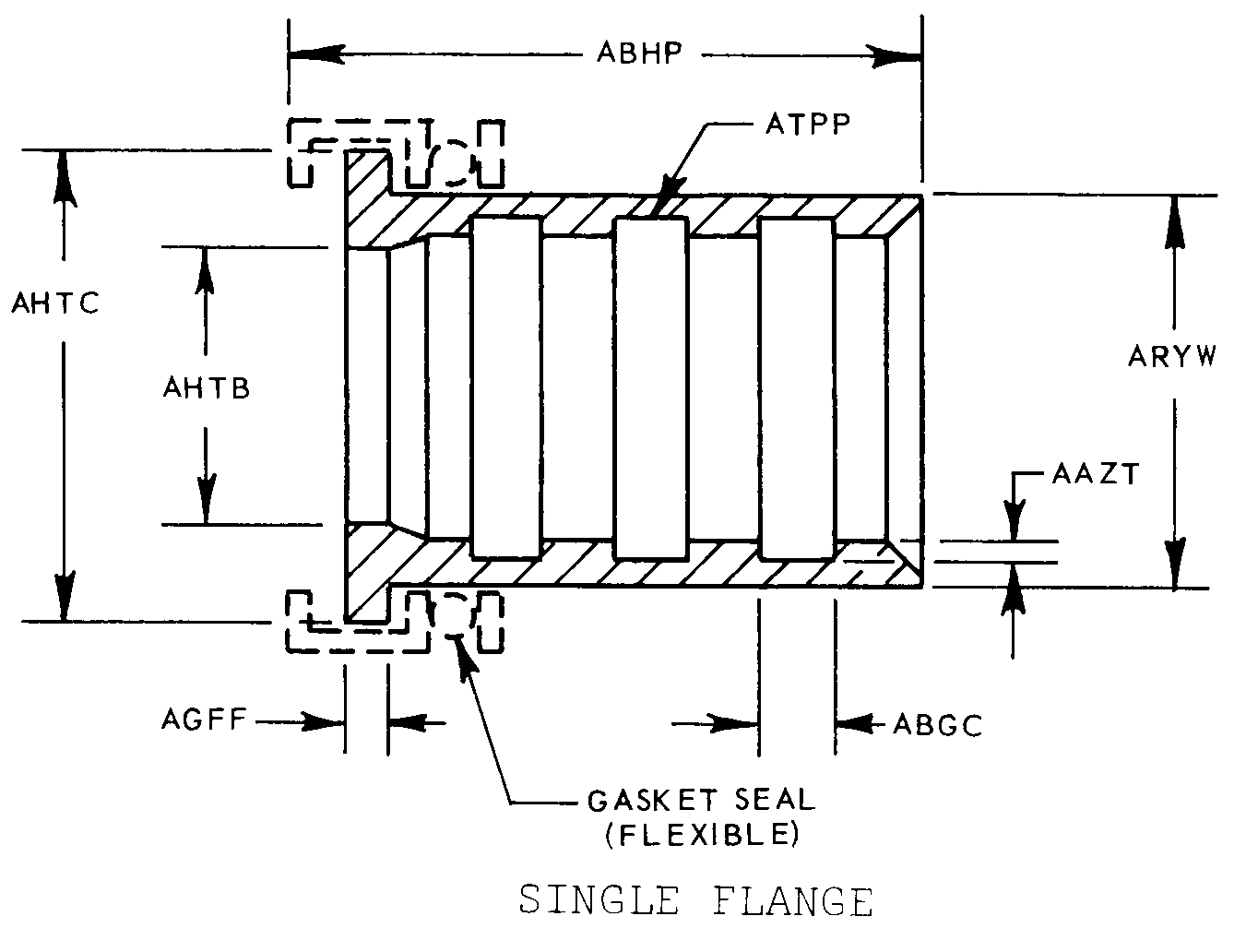

SINGLE FLANGE
Cross Reference | NSN 4730-00-231-5669
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C018-3-40 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| AS1716D40 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 63052-40 | 79326 | TRANSDIGM INCDBA ADEL WIGGINS GROUP- MILITARY |
Technical Data | NSN 4730-00-231-5669
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.500 INCHES NOMINAL |
| STYLE DESIGNATOR | SINGLE FLANGE |
| SLOT DEPTH | 0.031 INCHES MINIMUM AND 0.055 INCHES MAXIMUM |
| SLOT WIDTH | 0.040 INCHES NOMINAL |
| OVERALL LENGTH | 0.702 INCHES MAXIMUM |
| FLANGE WIDTH | 0.055 INCHES NOMINAL |
| FLANGE INSIDE DIAMETER | 2.470 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.813 INCHES MAXIMUM |
| SLEEVE OUTSIDE DIAMETER | 2.645 INCHES NOMINAL |
| SLOT QUANTITY | 6 |
