NSN 4730-00-230-9994
Part Details | SOIL PIPE LATERAL
4730-00-230-9994 A fitting having one or two branches which are fixed at various angles other than 90 degrees to the run. If item has two branches, they will be located on opposite sides of the run (180 degrees apart) and will be identical. It may have side inlets.
Alternate Parts: WWP401, WWP401, WWP401CS18866, WWP401CS188-66, WWP401, WWP401CLASSA, 4730-00-230-9994, 00-230-9994, 4730002309994, 002309994
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-230-9994 | 03813 ( LATERAL, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

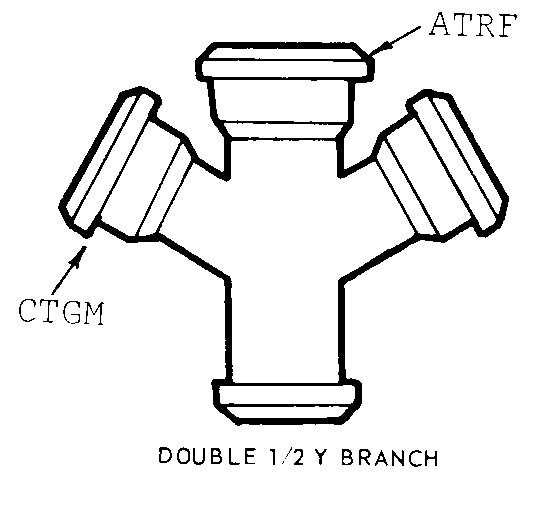

DOUBLE 1/2 Y BRANCH
Cross Reference | NSN 4730-00-230-9994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 99699 | DRI RELAYS INC. |
| WWP401 | 03776 | ESCO INC |
| WWP401CS188-66 | 03776 | ESCO INC |
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
| WWP401CLASSA | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-230-9994
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 9 DOUBLE 1/2 Y BRANCH |
| NOMINAL PIPE SIZE | 4.000 INCHES |
| BRANCH NOMINAL PIPE SIZE ACCOMMODATED | 4.000 INCHES |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
