NSN 4730-00-228-6353
Part Details | TUBE COUPLING SWAGE FERRULE
4730-00-228-6353 A flanged cylindrical metallic item used with a plain end tube and swaged in place. It is designed to be used as a component part of a flexible or rigid tube coupling.
Alternate Parts: F30200, F30-200, F2002AD, GF530AU2, 4730-00-228-6353, 00-228-6353, 4730002286353, 002286353
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAY 11, 1973 | 00-228-6353 | 32679 ( FERRULE, SWAGE, TUBE COUPLING ) |
REFERENCE DRAWINGS & PICTURES

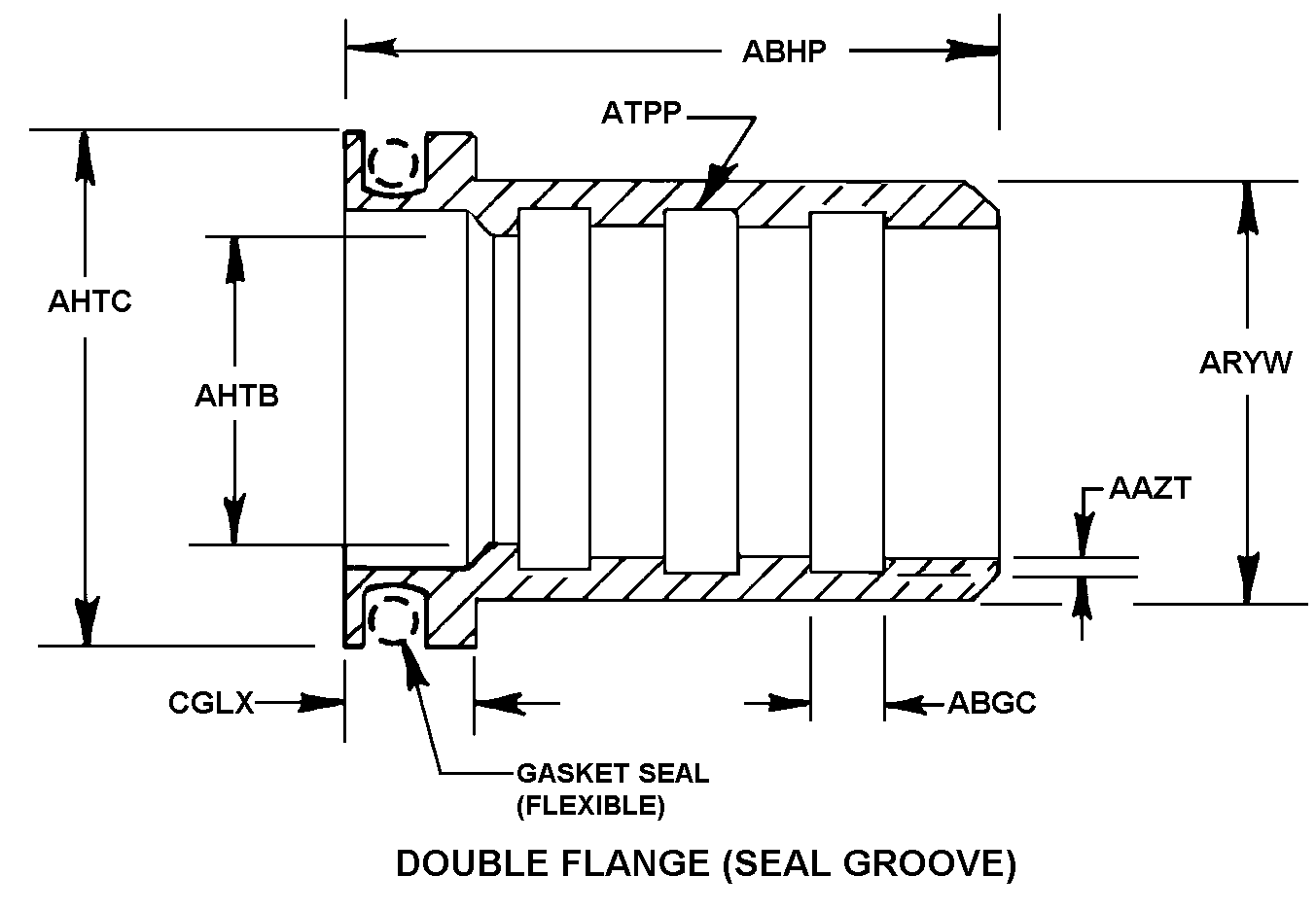

DOUBLE FLANGE (SEAL GROOVE)
Cross Reference | NSN 4730-00-228-6353
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F30-200 | 08118 | EATON AVIATION CORPORATION |
| F2002AD | 08118 | EATON AVIATION CORPORATION |
| GF530AU2 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATIONDIV MISSION SYSTEMS |
Technical Data | NSN 4730-00-228-6353
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 2.000 INCHES NOMINAL |
| STYLE DESIGNATOR | DOUBLE FLANGE (SEAL GROOVE) |
| OVERALL LENGTH | 0.770 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 2.285 INCHES NOMINAL |
| SLEEVE OUTSIDE DIAMETER | 2.156 INCHES NOMINAL |
| SLOT QUANTITY | 4 |
| DISTANCE FROM FLANGED END TO TUBING CLEARANCE HOLE | 0.344 INCHES NOMINAL |
| SPECIAL FEATURES | DESIGNED FOR DRY LUBE |
