NSN 4730-00-227-7916
Part Details | TUBE-HOSE FITTING COMPRESSION SLEEVE
4730-00-227-7916 A ring-shaped item whose outer surface is so shaped as to form a seat for the coupling nut and the fitting between which it is assembled. It is designed to be slipped over tubing or hose so that tightening of the coupling nut to the fitting compresses the sleeve against the circumference of the tubing or hose thereby effecting a tight seal between the tubing, or hose fitting and coupling nut.
Alternate Parts: 1655SS, 165-5SS, 4730-00-227-7916, 00-227-7916, 4730002277916, 002277916
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | FEB 12, 1969 | 00-227-7916 | 18026 ( SLEEVE, COMPRESSION, TUBE-HOSE FITTING ) |
REFERENCE DRAWINGS & PICTURES

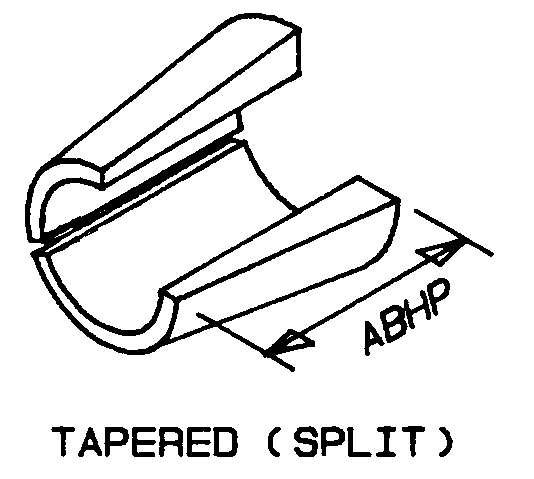

TAPERED (SPLIT)
Cross Reference | NSN 4730-00-227-7916
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 165-5SS | 97576 | LENZ INCDBA THE LENZ COMPANY |
Technical Data | NSN 4730-00-227-7916
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.313 INCHES NOMINAL |
| STYLE DESIGNATOR | TAPERED (SPLIT) |
| OVERALL LENGTH | 0.312 INCHES NOMINAL |
