NSN 4730-00-223-6416
Part Details | LUBRICATION FITTING
4730-00-223-6416 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: N1568, 191135, 329650P01, 1094K49, 329650P01, A1184, A1184, A1184, A1184, S4023, 380034, 4730-00-223-6416, 00-223-6416, 4730002236416, 002236416
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-223-6416 | 03177 ( FITTING, LUBRICATION ) |

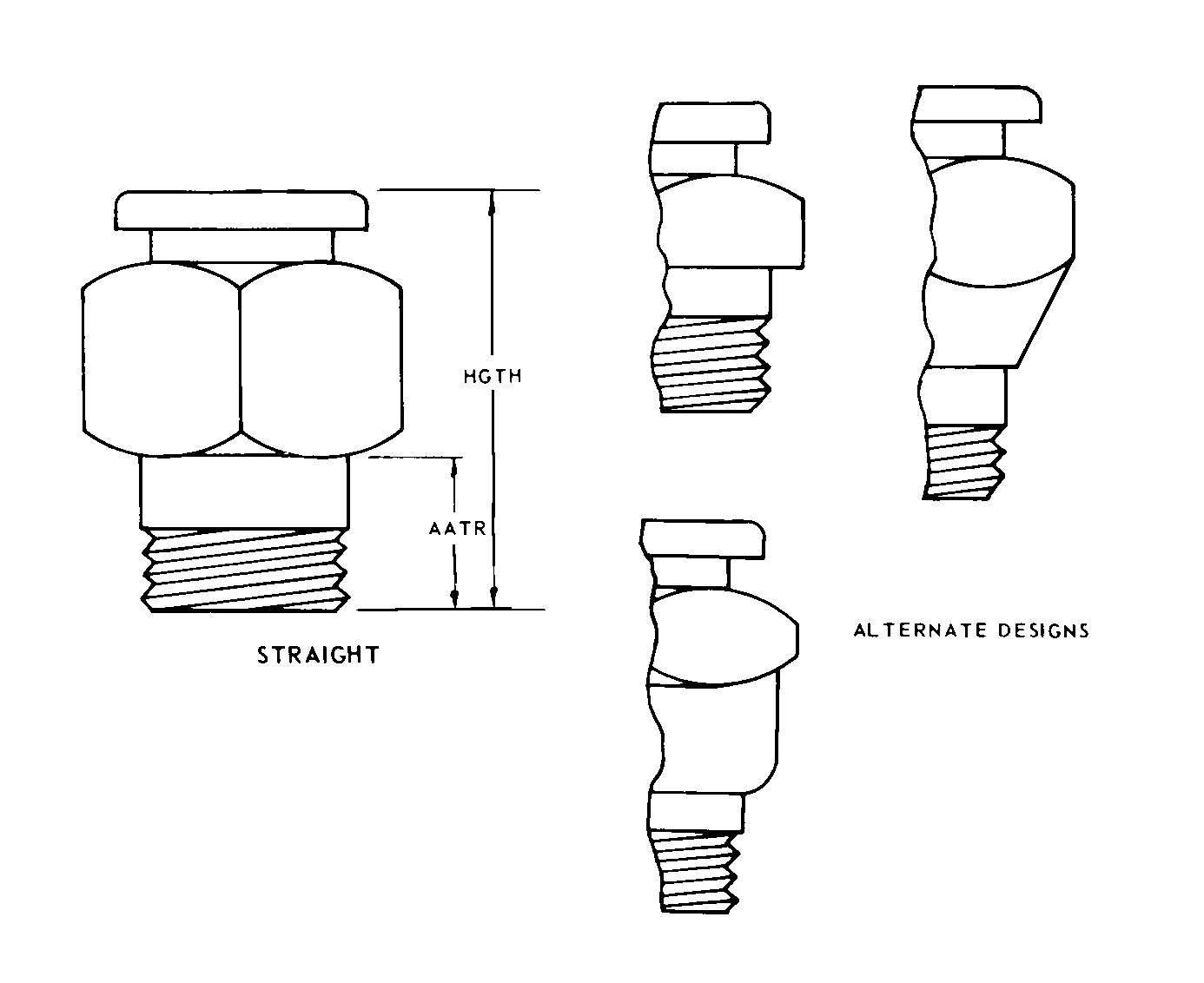

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-223-6416
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| N1568 | 56442 | DIAMOND REO TRUCK CO |
| 191135 | 24617 | GENERAL MOTORS CORP |
| 329650P01 | 33654 | HOWDEN FLUID SYSTEMS |
| 1094K49 | 0KVE6 | MCMASTER-CARR SUPPLY COMPANY |
| 329650P01 | 58163 | MEGGITT (NORTH HOLLYWOOD), INC.DBA MEGGITT CONTROL SYSTEMS |
| A1184 | 95879 | STEWART-WARNER ALEMITE CORP |
| A1184 | 70270 | STEWART-WARNER ALEMITE SALES CO INC |
| A1184 | 88033 | STEWART-WARNER ALEMITE SALES CO INC |
| A1184 | 57733 | STEWART-WARNER CORPORATION |
| S4023 | 62265 | VOLVO TRUCKS NORTH AMERICA INC.DBA FOREIGN PARENT IS VOLVO |
| 380034 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 4730-00-223-6416
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK LENGTH | 0.344 INCHES NOMINAL |
| HEIGHT | 0.750 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | PTF-SPL SHORT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| WIDTH ACROSS FLATS | 0.625 INCHES NOMINAL |
