NSN 4730-00-223-6398
Part Details | GREASE CUP
4730-00-223-6398 An item to be mounted on machinery, designed to hold grease and supply it to parts of machinery.
Alternate Parts: 208B00, STYLE207SIZE00, CA6444PC43, CA6447PC43, B1859, IX359, P542529, P542-5-29, 4730-00-223-6398, 00-223-6398, 4730002236398, 002236398
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-223-6398 | 03176 ( CUP, GREASE ) |
REFERENCE DRAWINGS & PICTURES

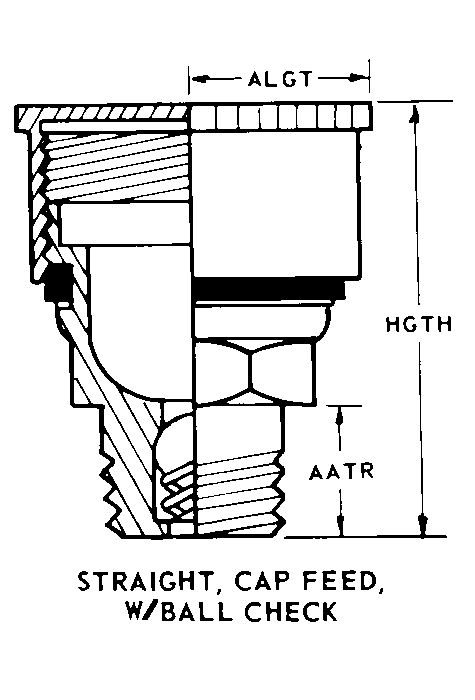

STRAIGHT, CAP FEED, W/BALL CHECK
Cross Reference | NSN 4730-00-223-6398
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 208B00 | 90655 | BOWEN PRODUCTS CORP |
| STYLE207SIZE00 | 90655 | BOWEN PRODUCTS CORP |
| CA6444PC43 | 83130 | BUFFALO PUMPS, INC.DIV BUFFALO PUMPS DIV |
| CA6447PC43 | 83130 | BUFFALO PUMPS, INC.DIV BUFFALO PUMPS DIV |
| B1859 | 64104 | DRESSER, INC.DIV DRESSER WAUKESHA |
| IX359 | 54641 | LEAR SIEGLER INCSHERWOOD DIV |
| P542-5-29 | 17572 | STERLING ENGINE CO INC |
Technical Data | NSN 4730-00-223-6398
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT, CAP FEED, W/BALL CHECK |
| ASSEMBLY CLEARANCE RADIUS | 0.547 INCHES NOMINAL |
| HEIGHT | 2.062 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| GREASE CAPACITY | 0.500 OUNCES |
| SPECIAL FEATURES | CAP HAS WING ON TOP FOR TURNING |
