NSN 4730-00-223-5931
Part Details | FLUID PASSAGE BOLT
4730-00-223-5931 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 301105C43, 3-01105C4-3, C627C43, C627C4-3, 4730-00-223-5931, 00-223-5931, 4730002235931, 002235931
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAR 16, 1970 | 00-223-5931 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES
RELIEVED

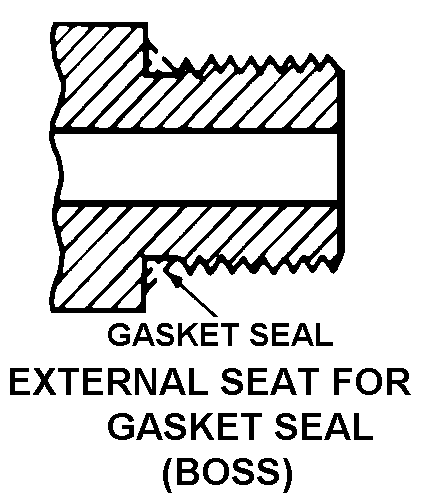

EXTERNAL SEAT FOR GASKET SEAL (BOSS)
EXTERNAL SEAT FOR GASKET SEAL (BOSS)
ROUND
Cross Reference | NSN 4730-00-223-5931
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3-01105C4-3 | 00624 | EATON-AEROQUIP LLC.DBA AEROSPACE GROUP |
| C627C4-3 | 81755 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 4730-00-223-5931
| Characteristic | Specifications |
|---|---|
| BODY STYLE | RELIEVED |
| OVERALL LENGTH | 1.313 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.094 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| FIRST END THREAD SERIES DESIGNATOR | UNF |
| FIRST END NOMINAL THREAD SIZE | 0.438 INCHES |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL BOSS |
| SECOND END STYLE DESIGNATOR | EXTERNAL SEAT FOR GASKET SEAL (BOSS) |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.375 INCHES |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| WRENCHING FEATURE STYLE | ROUND |
