NSN 4730-00-222-1859
Part Details | TUBE SEAL BONNET
4730-00-222-1859 A metal tube fitting used with a coupling nut or sealing cap to cap the end of a fitting. It may include items with integral mounting features.
Alternate Parts: J513, 4730-00-222-1859, 00-222-1859, 4730002221859, 002221859
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-222-1859 | 03784 ( SEAL BONNET, TUBE ) |
REFERENCE DRAWINGS & PICTURES

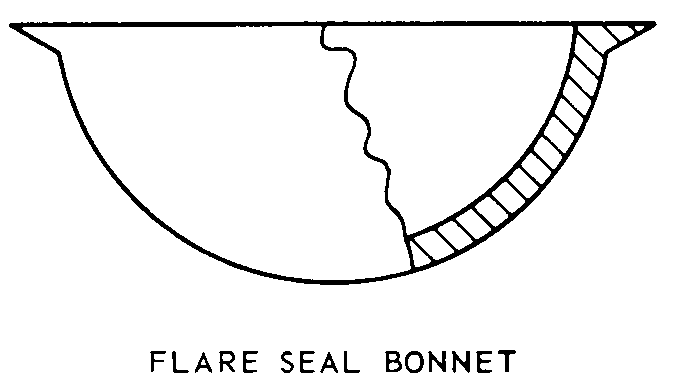

FLARE SEAL BONNET
Cross Reference | NSN 4730-00-222-1859
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| J513 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 4730-00-222-1859
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLARE SEAL BONNET |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.750 INCHES NOMINAL |
| INTEGRAL MOUNTING STUD | NOT INCLUDED |
| NONDEFINITIVE SPEC/STD DATA | 37 FIGURE AND 11 TABLE AND 3 TO 4 SIZE |
