NSN 4730-00-222-1857
Part Details | TUBE SEAL BONNET
4730-00-222-1857 A metal tube fitting used with a coupling nut or sealing cap to cap the end of a fitting. It may include items with integral mounting features.
Alternate Parts: A416, A-416, 3GF8, 3GF-8, J513, 8010114B, 8-010114B, 4730-00-222-1857, 00-222-1857, 4730002221857, 002221857
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1961 | 00-222-1857 | 03784 ( SEAL BONNET, TUBE ) |
REFERENCE DRAWINGS & PICTURES

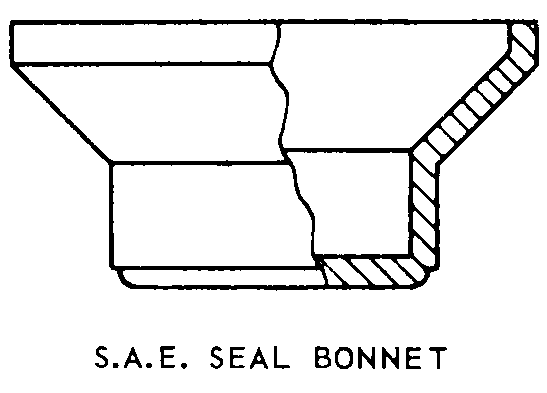

S.A.E. SEAL BONNET
Cross Reference | NSN 4730-00-222-1857
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A-416 | 41947 | MUELLER BRASS |
| 3GF-8 | 93061 | PARKER-HANNIFIN CORPORATIONDBA FLUID SYSTEM CONNECTORS DIVISION |
| J513 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| 8-010114B | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
Technical Data | NSN 4730-00-222-1857
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | S.A.E. SEAL BONNET |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.500 INCHES NOMINAL |
| INTEGRAL MOUNTING STUD | NOT INCLUDED |
| WORKING PRESSURE AND SERVICE TYPE | AAAA500.0 POUNDS PER SQUARE INCH NOMINAL |
| NONDEFINITIVE SPEC/STD DATA | 39 FIGURE AND 11 TABLE AND 1 TO 2 SIZE |
