NSN 4730-00-222-1016
Part Details | LUBRICATION FITTING
4730-00-222-1016 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: 4730-00-222-1016, 00-222-1016, 4730002221016, 002221016
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-222-1016 | 03177 ( FITTING, LUBRICATION ) |

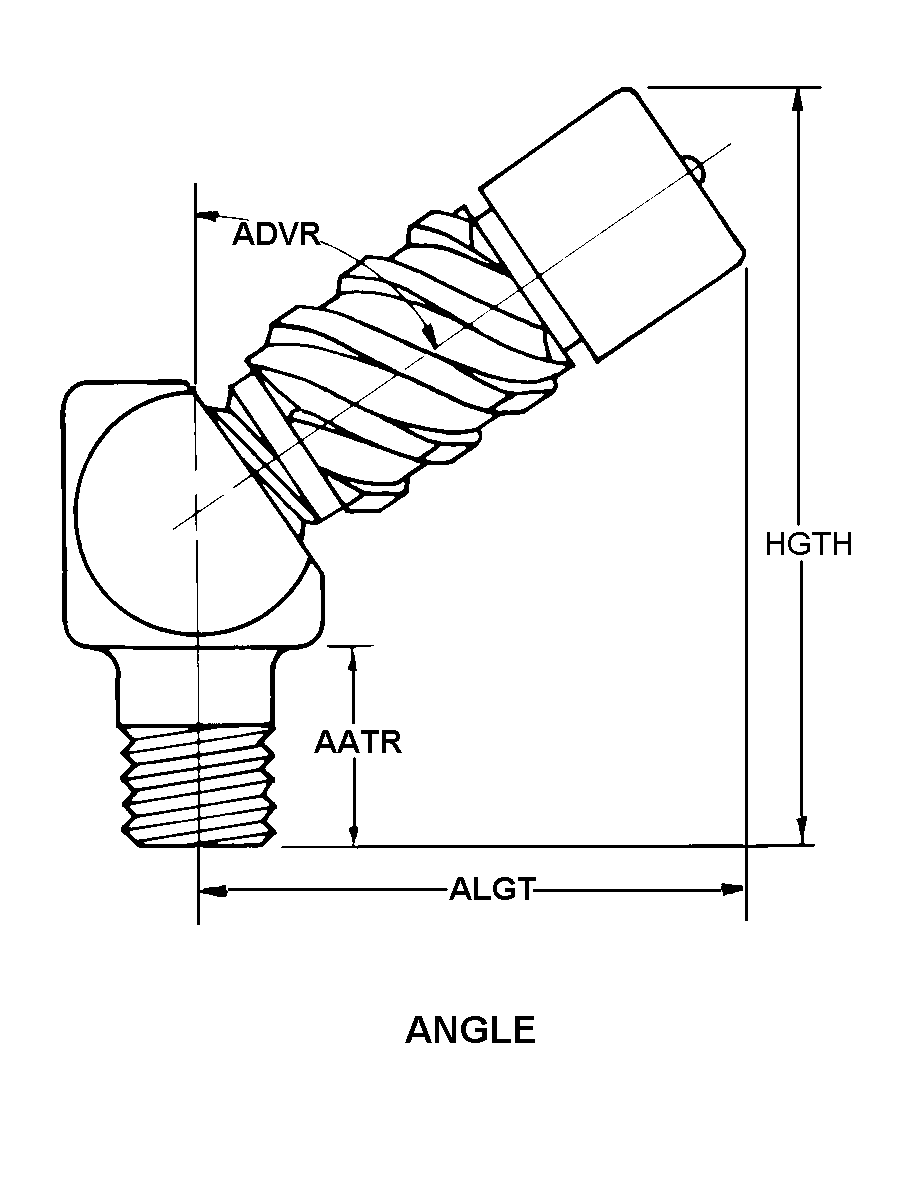

REFERENCE DRAWINGS & PICTURES
ANGLE
Cross Reference | NSN 4730-00-222-1016
| Part Number | Cage Code | Manufacturer |
|---|
Technical Data | NSN 4730-00-222-1016
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ANGLE |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| ANGLE IN DEG | 30.0 |
| ASSEMBLY CLEARANCE RADIUS | 0.359 INCHES NOMINAL |
| HEIGHT | 1.094 INCHES NOMINAL |
| SCREW THREAD SERIES DESIGNATOR | NPT |
| NOMINAL THREAD SIZE | 0.125 INCHES |
| THREAD QUANTITY PER INCH | 27 |
| WIDTH ACROSS FLATS | 0.438 INCHES NOMINAL |
| SPECIAL FEATURES | SURFACE LOCATED BALL CHECK VALVE |
