NSN 4730-00-222-0958
Part Details | LUBRICATION FITTING
4730-00-222-0958 A specifically designed item pressed or threaded into a lubrication passage, for the purpose of adapting a related coupler and/or grease gun, to dispense grease to a bearing, shaft and similar items.
Alternate Parts: AN2872, AN287-2, 1952, 4730-00-222-0958, 00-222-0958, 4730002220958, 002220958
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-222-0958 | 03177 ( FITTING, LUBRICATION ) |

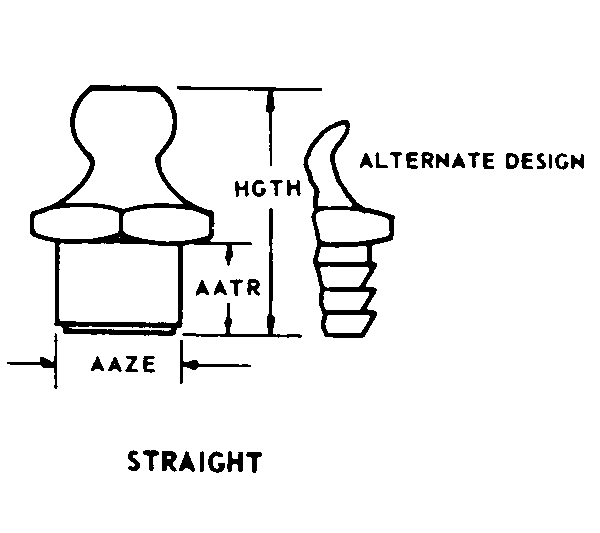

REFERENCE DRAWINGS & PICTURES
STRAIGHT
Cross Reference | NSN 4730-00-222-0958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AN287-2 | 88044 | AERONAUTICAL STANDARDS GROUPDEPT OF NAVY AND AIR FORCE |
| 1952 | 70270 | STEWART-WARNER ALEMITE SALES CO INC |
Technical Data | NSN 4730-00-222-0958
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | STRAIGHT |
| SHANK LENGTH | 0.125 INCHES NOMINAL |
| SHANK DIAMETER | 0.246 INCHES NOMINAL |
| HEIGHT | 0.469 INCHES NOMINAL |
| SPECIAL FEATURES | NO BALL CHECK; SERRATED DRIVE SHANK |
