NSN 4730-00-221-2118
Part Details | TUBE CAP
4730-00-221-2118 A tube fitting primarily designed for permanent installation during tubing system operation to fit over or butt against a tube or fitting for sealing. See also CAP, PROTECTIVE, DUST AND MOISTURE SEAL and CAP-PLUG, PROTECTIVE, DUST AND MOISTURE SEAL.
Alternate Parts: ER9295D, ER929-5D, ER9295D, ER929-5D, MS21914D5, 4730-00-221-2118, 00-221-2118, 4730002212118, 002212118
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1960 | 00-221-2118 | 06074 ( CAP, TUBE ) |
REFERENCE DRAWINGS & PICTURES

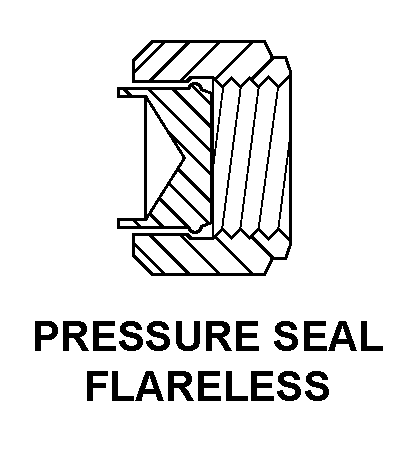

PRESSURE SEAL FLARELESS
CAP
Cross Reference | NSN 4730-00-221-2118
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ER929-5D | 79470 | DANA CORPWEATHERHEAD DIV |
| ER929-5D | 14798 | DESIGNED METAL CONNECTIONS, INC.DBA PERMASWAGE USA |
| MS21914D5 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 4730-00-221-2118
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 4 CAP |
| CONNECTION STYLE | PRESSURE SEAL FLARELESS |
| SEAT ANGLE | 37.0 DEGREES |
| TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 0.312 INCHES NOMINAL |
| SPECIFICATION/STANDARD DATA | 96906-MS21914 GOVERNMENT STANDARD |
