NSN 4730-00-206-1384
Part Details | FLUID PASSAGE BOLT
4730-00-206-1384 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Alternate Parts: 5306002061384, 7328328, 4730-00-206-1384, 00-206-1384, 4730002061384, 002061384
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-206-1384 | 18683 ( BOLT, FLUID PASSAGE ) |
REFERENCE DRAWINGS & PICTURES
PLAIN
GASKET SEAL COMPRESSION
PLAIN
GASKET SEAL COMPRESSION
PLAIN

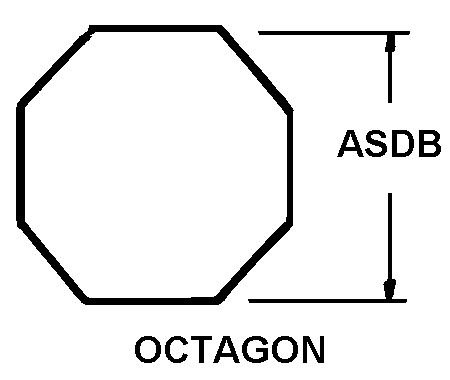

OCTAGON
Cross Reference | NSN 4730-00-206-1384
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5306002061384 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 7328328 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 4730-00-206-1384
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$DST0140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624 FED SPEC SINGLE MATERIAL RESPONSE |
| SURFACE TREATMENT | CADMIUM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE |
| BODY STYLE | 5 PLAIN |
| CONCENTRIC HOLE DEPTH | 1.656 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.140 INCHES NOMINAL |
| OVERALL LENGTH | 3.469 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.016 INCHES NOMINAL |
| SECOND DIAMETER FROM WRENCHING FEATURE | 0.557 INCHES MINIMUM AND 0.558 INCHES MAXIMUM |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 1.094 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.531 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.719 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 2.828 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.562 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED INTERNAL TUBE |
| FIRST END STYLE DESIGNATOR | 4 GASKET SEAL COMPRESSION |
| FIRST END SEAT RADIUS | 0.062 INCHES NOMINAL |
| FIRST END THREAD SERIES DESIGNATOR | NPT |
| FIRST END NOMINAL THREAD SIZE | 0.125 INCHES |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.312 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | PLAIN |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.562 INCHES |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| WRENCHING FEATURE STYLE | OCTAGON |
| WIDTH ACROSS FLATS | 0.875 INCHES NOMINAL |
| SPECIAL FEATURES | USE ON 1/4 TON,2 WHEEL CARGO TRAILER,M416A1 |
