NSN 4730-00-204-1961
Part Details | TUBE FITTING BRAZING FERRULE
4730-00-204-1961 A flanged cylindrical metallic item designed to be slipped over tubing and brazed in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union.
Alternate Parts: 259345, 259345, 259345, 4730-00-204-1961, 00-204-1961, 4730002041961, 002041961
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-204-1961 | 18024 ( FERRULE, BRAZING, TUBE FITTING ) |

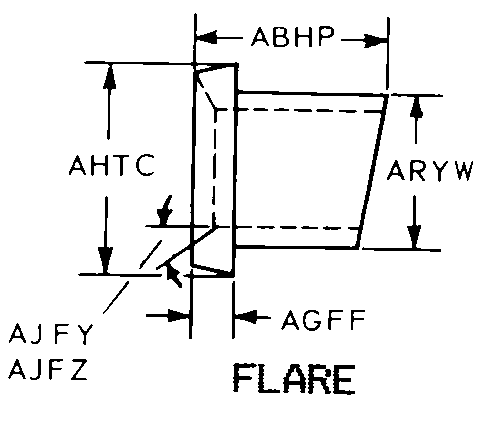

REFERENCE DRAWINGS & PICTURES
FLARE
Cross Reference | NSN 4730-00-204-1961
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 259345 | 00088 | ROYAL OAK GAGE INC |
| 259345 | 11449 | TURBO POWER & MARINE SYSTEM INCSUB OF UNITED TECHNOLOGIES CORP |
| 259345 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 4730-00-204-1961
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316F |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| HOSE/TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 1.000 INCHES NOMINAL |
| STYLE DESIGNATOR | FLARE |
| OVERALL LENGTH | 1.406 INCHES NOMINAL |
| FLANGE WIDTH | 0.332 INCHES MINIMUM AND 0.352 INCHES MAXIMUM |
| FLANGE OUTSIDE DIAMETER | 1.219 INCHES MINIMUM AND 1.222 INCHES MAXIMUM |
| SEAT ANGLE IN DEG | 37.0 |
| SLEEVE OUTSIDE DIAMETER | 1.078 INCHES MINIMUM AND 1.081 INCHES MAXIMUM |
