NSN 4730-00-204-1166
Part Details | FLUID PRESSURE LINE MULTIPLE CONNECTOR
4730-00-204-1166 A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S).
Alternate Parts: F311907, F311907, 4730-00-204-1166, 00-204-1166, 4730002041166, 002041166
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | MAR 28, 1973 | 00-204-1166 | 18682 ( CONNECTOR, MULTIPLE, FLUID PRESSURE LINE ) |

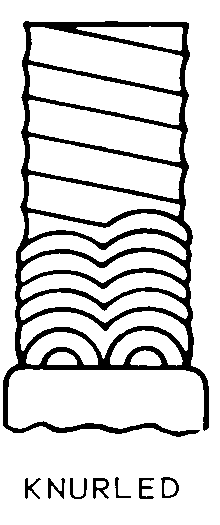

REFERENCE DRAWINGS & PICTURES
BEADED
1 FLUID CONNECTION
Cross Reference | NSN 4730-00-204-1166
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| F311907 | U9143 | BAE SYSTEMS (OPERATIONS) LTD |
| F311907 | K0289 | BRITISH AEROSPACE MILITARYAIRCRAFT & AEROSTRUCTURES |
Technical Data | NSN 4730-00-204-1166
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC |
| STYLE DESIGNATOR | 6 1 FLUID CONNECTION |
| OVERALL LENGTH | 1.562 INCHES NOMINAL |
| OVERALL WIDTH | 1.000 INCHES NOMINAL |
| THICKNESS | 0.750 INCHES NOMINAL |
| BOLT HOLE DIAMETER | 0.594 INCHES NOMINAL |
| FLUID CONNECTION QUANTITY | 1 |
| CONNECTION STYLE | BEADED |
| FLUID CONVEYANCE TYPE AND SIZE FOR WHICH DESIGNED | 5/16 IN. ID HOSE SIZE |
| THREAD PROVISION | UNTHREADED |
| SEAT | NOT INCLUDED |
| BOLT HOLE FLATS SERRATIONS | NOT PROVIDED |
| BOLT HOLE FLUID PASSAGE | PROVIDED |
| SPECIAL FEATURES | FURNISHED W/1 BOLT FLUID PASSAGE |
