NSN 4730-00-204-0677
Part Details | SOIL PIPE TEE
4730-00-204-0677 A fitting consisting of a run and a branch. The branch may be either curved or straight, but the axis of the end connection intersects the axis of the run at right angles. It may have side inlets.
Alternate Parts: WWP401, 4730-00-204-0677, 00-204-0677, 4730002040677, 002040677
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-204-0677 | 03814 ( TEE, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

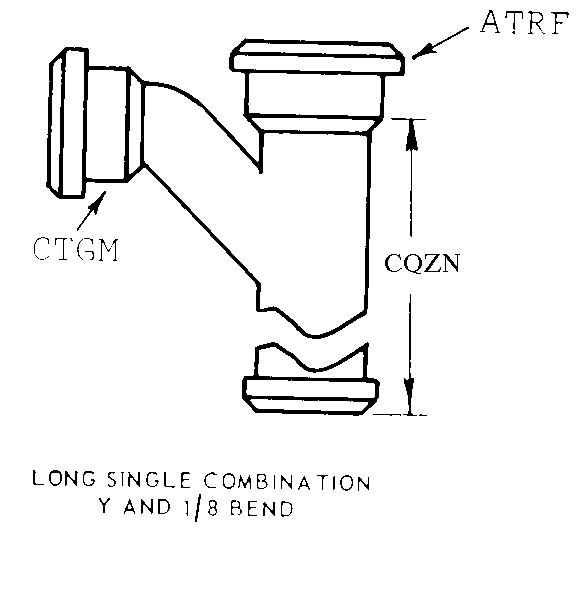

LONG SINGLE COMBINATION Y AND 1/8 BEND
Cross Reference | NSN 4730-00-204-0677
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-204-0677
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 0 LONG SINGLE COMBINATION Y AND 1/8 BEND |
| NOMINAL PIPE SIZE | 4.000 INCHES |
| BRANCH NOMINAL THREAD SIZE | 3.000 INCHES |
| THREAD SERIES | NPT |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
