NSN 4730-00-204-0572
Part Details | SOIL PIPE BEND
4730-00-204-0572 A fitting used to connect two or more sections of soil pipe to form a turn. This includes bends with side or heel inlets.
Alternate Parts: WWP401, 4730-00-204-0572, 00-204-0572, 4730002040572, 002040572
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-204-0572 | 03792 ( BEND, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

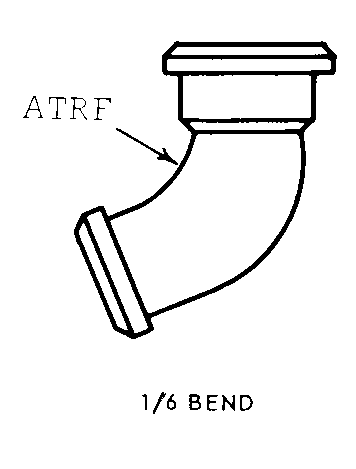

1/6 BEND
Cross Reference | NSN 4730-00-204-0572
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-204-0572
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1/6 BEND |
| NOMINAL PIPE SIZE | 8.000 INCHES |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH GRADE |
