NSN 4730-00-203-8195
Part Details | TUBE NIPPLE
4730-00-203-8195 A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets.
Alternate Parts: 103512D16, 1-03512D16, LS181216, LS1812-16, 4730-00-203-8195, 00-203-8195, 4730002038195, 002038195
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-203-8195 | 03783 ( NIPPLE, TUBE ) |
REFERENCE DRAWINGS & PICTURES

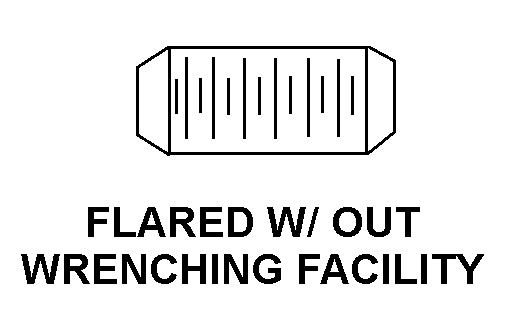

FLARED W/ OUT WRENCHING FACILITY
Cross Reference | NSN 4730-00-203-8195
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1-03512D16 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
| LS1812-16 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 4730-00-203-8195
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FLARED W/ OUT WRENCHING FACILITY |
| NOMINAL OVERALL LENGTH | 2.132 INCHES |
| SPECIFICATION/STANDARD DATA | 98897-LS1812-16 MANUFACTURERS SOURCE CONTROL |
