NSN 4730-00-203-7960
Part Details | SOIL PIPE TRAP
4730-00-203-7960 A device having hub and/or spigot ends. It is used in drain of soil systems to prevent sewer gas from backing up beyond desired point by forming a water seal in the line. This is accomplished by its peculiar shape which is usually in the form of a letter P or S. It may have side inlet and/or cleanout.
Alternate Parts: WWP401, 4730-00-203-7960, 00-203-7960, 4730002037960, 002037960
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | JAN 01, 1963 | 00-203-7960 | 17663 ( TRAP, SOIL PIPE ) |
REFERENCE DRAWINGS & PICTURES

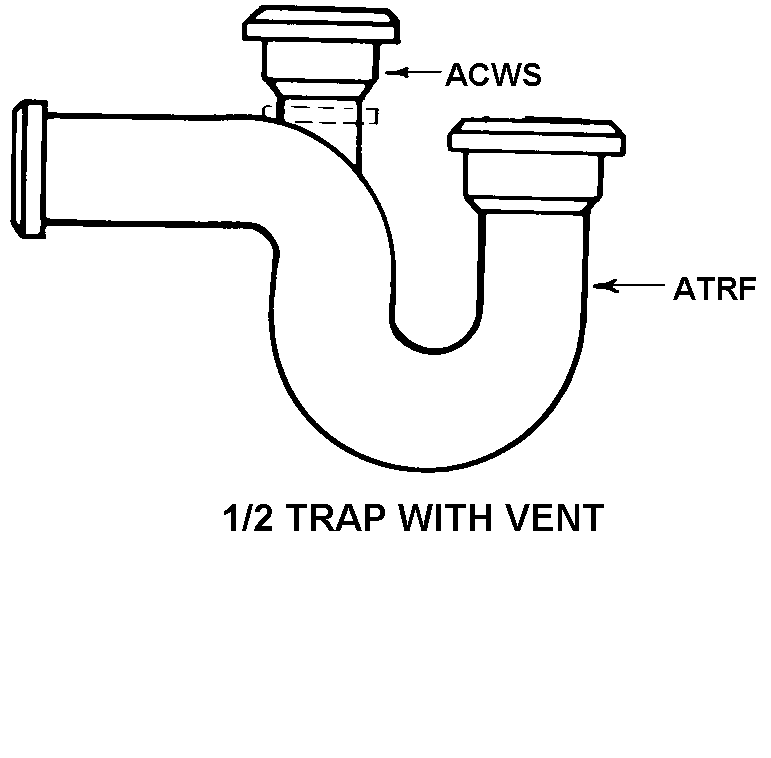

1/2 TRAP WITH VENT
Cross Reference | NSN 4730-00-203-7960
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| WWP401 | 81348 | FEDERAL SPECIFICATIONSPROMULGATED BY GENERAL SERVICES |
Technical Data | NSN 4730-00-203-7960
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 1/2 TRAP WITH VENT |
| VENT NOMINAL PIPE SIZE ACCOMMODATED | 3.000 INCHES |
| NOMINAL PIPE SIZE | 3.000 INCHES |
| MATERIAL | IRON CAST |
| WALL THICKNESS DESIGNATION | EXTRA HEAVY WEIGHT |
| NONDEFINITIVE SPEC/STD DATA | XH CLASS |
